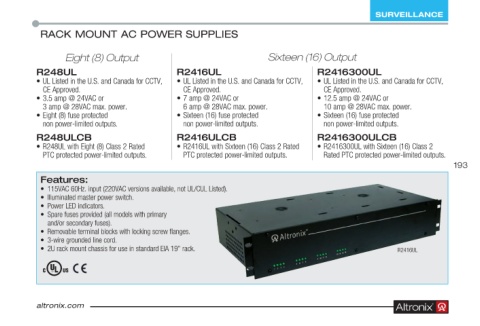

Page 193 - Altronix Product Guide

SURVEILLANCE

RACK MOUNT AC POWER SUPPLIES
Eight (8) Output Sixteen (16) Output
R248UL R2416UL R2416300UL
• UL Listed in the U .S . and Canada for CCTV, • UL Listed in the U .S . and Canada for CCTV, • UL Listed in the U .S . and Canada for CCTV,
CE Approved . CE Approved . CE Approved .
• 3 .5 amp @ 24VAC or • 7 amp @ 24VAC or • 12 .5 amp @ 24VAC or
3 amp @ 28VAC max . power . 6 amp @ 28VAC max . power . 10 amp @ 28VAC max . power .
• Eight (8) fuse protected • Sixteen (16) fuse protected • Sixteen (16) fuse protected
non power-limited outputs . non power-limited outputs . non power-limited outputs .
R248ULCB R2416ULCB R2416300ULCB
• R248UL with Eight (8) Class 2 Rated • R2416UL with Sixteen (16) Class 2 Rated • R2416300UL with Sixteen (16) Class 2
PTC protected power-limited outputs . PTC protected power-limited outputs . Rated PTC protected power-limited outputs .
193
Features:
• 115VAC 60Hz . input (220VAC versions available, not UL/CUL Listed) .
• Illuminated master power switch .
• Power LED indicators .
• Spare fuses provided (all models with primary
and/or secondary fuses) .
• Removable terminal blocks with locking screw flanges .
• 3-wire grounded line cord .
• 2U rack mount chassis for use in standard EIA 19” rack . R2416UL
