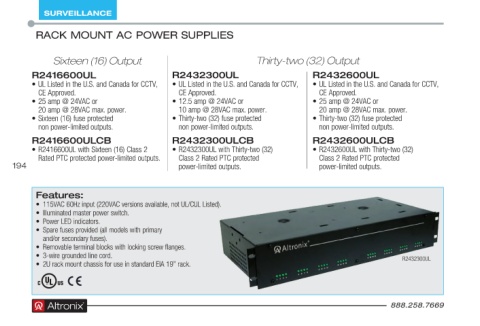

Page 194 - Altronix Product Guide

SURVEILLANCE

RACK MOUNT AC POWER SUPPLIES

Sixteen (16) Output Thirty-two (32) Output
R2416600UL R2432300UL R2432600UL
• UL Listed in the U .S . and Canada for CCTV, • UL Listed in the U .S . and Canada for CCTV, • UL Listed in the U .S . and Canada for CCTV,
CE Approved . CE Approved . CE Approved .
• 25 amp @ 24VAC or • 12 .5 amp @ 24VAC or • 25 amp @ 24VAC or
20 amp @ 28VAC max . power . 10 amp @ 28VAC max . power . 20 amp @ 28VAC max . power .
• Sixteen (16) fuse protected • Thirty-two (32) fuse protected • Thirty-two (32) fuse protected
non power-limited outputs . non power-limited outputs . non power-limited outputs .
R2416600ULCB R2432300ULCB R2432600ULCB
• R2416600UL with Sixteen (16) Class 2 • R2432300UL with Thirty-two (32) • R2432600UL with Thirty-two (32)
Rated PTC protected power-limited outputs . Class 2 Rated PTC protected Class 2 Rated PTC protected
194 power-limited outputs . power-limited outputs .

Features:
• 115VAC 60Hz input (220VAC versions available, not UL/CUL Listed) .
• Illuminated master power switch .
• Power LED indicators .
• Spare fuses provided (all models with primary
and/or secondary fuses) .
• Removable terminal blocks with locking screw flanges .
• 3-wire grounded line cord . R2432300UL
• 2U rack mount chassis for use in standard EIA 19” rack .

888.258.7669
®
