ACCESS

                            ™

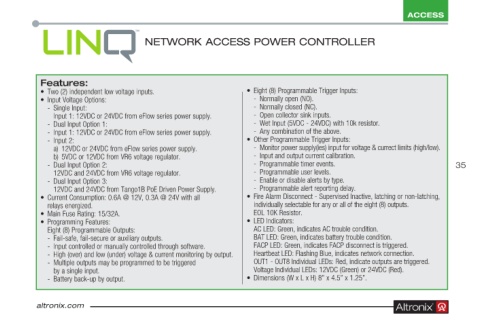

                              NETWORK ACCESS POWER CONTROLLER



         Features:
         •  Two (2) independent low voltage inputs .  •  Eight (8) Programmable Trigger Inputs:
         •  Input Voltage Options:                  -  Normally open (NO) .
           -  Single Input:                         -  Normally closed (NC) .
             Input 1: 12VDC or 24VDC from eFlow series power supply .    -  Open collector sink inputs .
           -  Dual Input Option 1:                  -  Wet Input (5VDC - 24VDC) with 10k resistor .
           -  Input 1: 12VDC or 24VDC from eFlow series power supply .    -  Any combination of the above .
           -  Input 2:                            •  Other Programmable Trigger Inputs:
             a)  12VDC or 24VDC from eFlow series power supply .    -  Monitor power supply(ies) input for voltage & currect limits (high/low) .
             b)  5VDC or 12VDC from VR6 voltage regulator .    -  Input and output current calibration .
           -  Dual Input Option 2:                  -  Programmable timer events .          35
             12VDC and 24VDC from VR6 voltage regulator .    -  Programmable user levels .
           -  Dual Input Option 3:                  -  Enable or disable alerts by type .
             12VDC and 24VDC from Tango1B PoE Driven Power Supply .    -  Programmable alert reporting delay .
         •  Current Consumption: 0 .6A @ 12V, 0 .3A @ 24V with all  •  Fire Alarm Disconnect - Supervised Inactive, latching or non-latching,
           relays energized .                       individually selectable for any or all of the eight (8) outputs .
         •  Main Fuse Rating: 15/32A .              EOL 10K Resistor .
         •  Programming Features:                 •  LED Indicators:
           Eight (8) Programmable Outputs:          AC LED: Green, indicates AC trouble condition .
           -  Fail-safe, fail-secure or auxiliary outputs .    BAT LED: Green, indicates battery trouble condition .
           -  Input controlled or manually controlled through software .    FACP LED: Green, indicates FACP disconnect is triggered .
           -  High (over) and low (under) voltage & current monitoring by output .    Heartbeat LED: Flashing Blue, indicates network connection .
           -  Multiple outputs may be programmed to be triggered    OUT1 - OUT8 Individual LEDs: Red, indicate outputs are triggered .
             by a single input .                    Voltage Individual LEDs: 12VDC (Green) or 24VDC (Red) .
           -  Battery back-up by output .         •  Dimensions (W x L x H) 8” x 4 .5” x 1 .25” .
