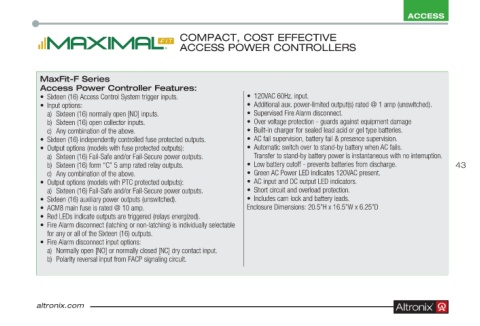

P. 43

ACCESS

                                     COMPACT, COST EFFECTIVE
                                 FIT
                                     ACCESS POWER CONTROLLERS

         MaxFit-F Series       FIT
         Access Power Controller Features:
         •  Sixteen (16) Access Control System trigger inputs .  •  120VAC 60Hz . input .
         •  Input options:                        •  Additional aux . power-limited output(s) rated @ 1 amp (unswitched) .
           a)  Sixteen (16) normally open [NO] inputs .  •  Supervised Fire Alarm disconnect .
           b)  Sixteen (16) open collector inputs .  •  Over voltage protection - guards against equipment damage
           c)  Any combination of the above .     •  Built-in charger for sealed lead acid or gel type batteries .
         •  Sixteen (16) independently controlled fuse protected outputs .  •  AC fail supervision, battery fail & presence supervision .
         •  Output options (models with fuse protected outputs):  •  Automatic switch over to stand-by battery when AC fails .
           a)  Sixteen (16) Fail-Safe and/or Fail-Secure power outputs .    Transfer to stand-by battery power is instantaneous with no interruption .
            b)  Sixteen (16) form “C” 5 amp rated relay outputs .  •  Low battery cutoff - prevents batteries from discharge .  43
           c)  Any combination of the above .     •  Green AC Power LED indicates 120VAC present .
         •  Output options (models with PTC protected outputs):  •  AC input and DC output LED indicators .
           a)  Sixteen (16) Fail-Safe and/or Fail-Secure power outputs .  •  Short circuit and overload protection .
         •  Sixteen (16) auxiliary power outputs (unswitched)  .  •  Includes cam lock and battery leads .
         •  ACM8 main fuse is rated @ 10 amp .    Enclosure Dimensions: 20 .5”H x 16 .5”W x 6 .25”D
         •  Red LEDs indicate outputs are triggered (relays energized) .
         •  Fire Alarm disconnect (latching or non-latching) is individually selectable
           for any or all of the Sixteen (16) outputs .
         •  Fire Alarm disconnect input options:
           a)  Normally open [NO] or normally closed [NC] dry contact input .
           b)  Polarity reversal input from FACP signaling circuit .
