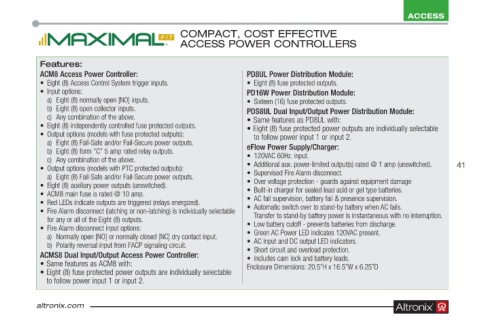

Page 41 - Altronix Product Guide

ACCESS
COMPACT, COST EFFECTIVE
FIT
ACCESS POWER CONTROLLERS
Features:
ACM8 Access Power Controller: FIT PD8UL Power Distribution Module:
• Eight (8) Access Control System trigger inputs . • Eight (8) fuse protected outputs .
• Input options: PD16W Power Distribution Module:
a) Eight (8) normally open [NO] inputs . • Sixteen (16) fuse protected outputs .
b) Eight (8) open collector inputs . PDS8UL Dual Input/Output Power Distribution Module:
c) Any combination of the above . • Same features as PD8UL with:
• Eight (8) independently controlled fuse protected outputs . • Eight (8) fuse protected power outputs are individually selectable
• Output options (models with fuse protected outputs): to follow power input 1 or input 2 .
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs . eFlow Power Supply/Charger:
b) Eight (8) form “C” 5 amp rated relay outputs . • 120VAC 60Hz . input .
c) Any combination of the above .
• Output options (models with PTC protected outputs): • Additional aux . power-limited output(s) rated @ 1 amp (unswitched) . 41
• Supervised Fire Alarm disconnect .
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs .
• Eight (8) auxiliary power outputs (unswitched) . • Over voltage protection - guards against equipment damage
• Built-in charger for sealed lead acid or gel type batteries .
• ACM8 main fuse is rated @ 10 amp .
• Red LEDs indicate outputs are triggered (relays energized) . • AC fail supervision, battery fail & presence supervision .
• Automatic switch over to stand-by battery when AC fails .
• Fire Alarm disconnect (latching or non-latching) is individually selectable
for any or all of the Eight (8) outputs . Transfer to stand-by battery power is instantaneous with no interruption .
• Low battery cutoff - prevents batteries from discharge .
• Fire Alarm disconnect input options:
a) Normally open [NO] or normally closed [NC] dry contact input . • Green AC Power LED indicates 120VAC present .
• AC input and DC output LED indicators .
b) Polarity reversal input from FACP signaling circuit . • Short circuit and overload protection .
ACMS8 Dual Input/Output Access Power Controller: • Includes cam lock and battery leads .
• Same features as ACM8 with: Enclosure Dimensions: 20 .5”H x 16 .5”W x 6 .25”D
• Eight (8) fuse protected power outputs are individually selectable
to follow power input 1 or input 2 .
