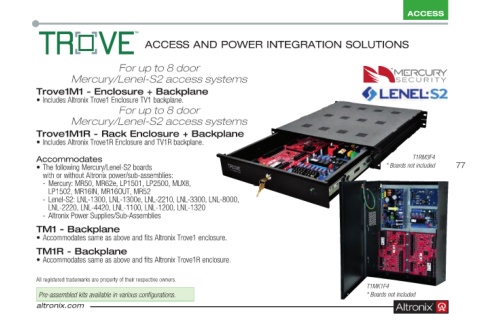

Page 77 - Altronix Product Guide

ACCESS

ACCESS AND POWER INTEGRATION SOLUTIONS

For up to 8 door
Mercury/Lenel-S2 access systems
Trove1M1 - Enclosure + Backplane
• Includes Altronix Trove1 Enclosure TV1 backplane .
For up to 8 door
Mercury/Lenel-S2 access systems
Trove1M1R - Rack Enclosure + Backplane
• Includes Altronix Trove1R Enclosure and TV1R backplane .
Accommodates T1RM3F4
• The following Mercury/Lenel-S2 boards * Boards not included 77
with or without Altronix power/sub-assemblies:
- Mercury: MR50, MR62e, LP1501, LP2500, MUX8, LP4502,
LP1502, MR16IN, MR16OUT, MR52
- Lenel-S2: LNL-1300, LNL-1300e, LNL-2210, LNL-3300, LNL-8000,
LNL-2220, LNL-4420, LNL-1100, LNL-1200, LNL-1320
- Altronix Power Supplies/Sub-Assemblies
TM1 - Backplane
• Accommodates same as above and fits Altronix Trove1 enclosure .
TM1R - Backplane
• Accommodates same as above and fits Altronix Trove1R enclosure .
All registered trademarks are property of their respective owners .
T1MK1F4
Pre-assembled kits available in various configurations. * Boards not included
