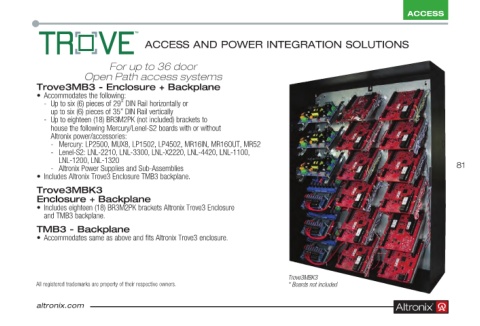

Page 81 - Altronix Product Guide

ACCESS

ACCESS AND POWER INTEGRATION SOLUTIONS

For up to 36 door
Open Path access systems
Trove3MB3 - Enclosure + Backplane
• Accommodates the following:
- Up to six (6) pieces of 29” DIN Rail horizontally or
up to six (6) pieces of 35” DIN Rail vertically
- Up to eighteen (18) BR3M2PK (not included) brackets to
house the following Mercury/Lenel-S2 boards with or without
Altronix power/accessories:
- Mercury: LP2500, MUX8, LP1502, LP4502, MR16IN, MR16OUT, MR52
- Lenel-S2: LNL-2210, LNL-3300, LNL-X2220, LNL-4420, LNL-1100,
LNL-1200, LNL-1320 81
- Altronix Power Supplies and Sub-Assemblies
• Includes Altronix Trove3 Enclosure TMB3 backplane .
Trove3MBK3
Enclosure + Backplane
• Includes eighteen (18) BR3M2PK brackets Altronix Trove3 Enclosure
and TMB3 backplane .
TMB3 - Backplane
• Accommodates same as above and fits Altronix Trove3 enclosure .

Trove3MBK3
All registered trademarks are property of their respective owners . * Boards not included
