6062

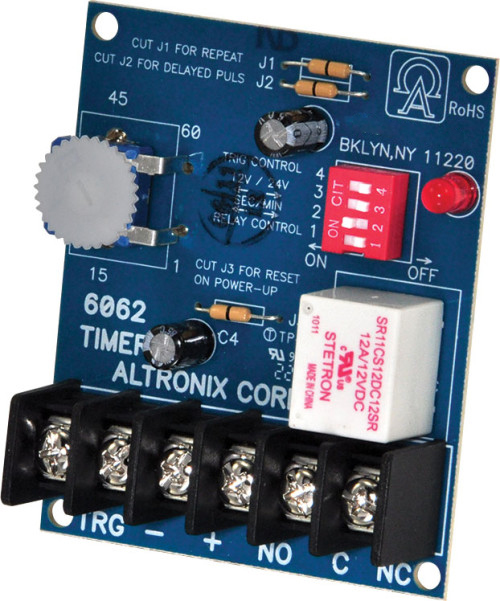

Timer, Multi-Purpose, 12/24VDC 1 Second to 60 Minutes, Board

6062 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher.

  • Input
    • 12VDC or 24VDC operation is selectable.
  • Current Draw
    • Stand-by: 3mA, Relay energized: 40mA.
  • Relay
    • Selectable relay activation at the start or end of the timing cycle.
    • One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
  • Features
    • Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
    • Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
    • Built-in reset feature which cancels timing cycle.
    • Repeat (flasher/pulse) mode.
  • Visual Indicators
    • LED indicates relay is energized.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
Dimensions (approximate):
  • 2.5"W x 3"L x 0.75"H (63.5 mm W x 76.2 mm L x 19.05 mm H).
Weights (approximate):
  • Product Weight: 0.1 Lbs. (0.15 kg).
  • Shipping Weight: 0.15 Lbs. (0.07 kg).
