AL1024XR220

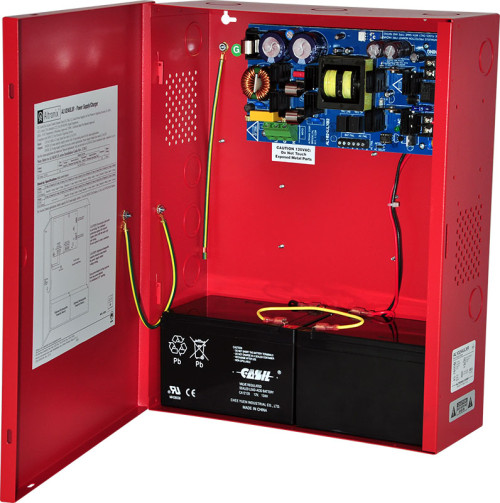

Power Supply Charger, Single Fused Output, 24VDC @ 10A, 220VAC, Red BC400 Enclosure

AL1024XR220 is a power supply/charger that converts a nominal 220VAC, 50/60Hz input into a single 24VDC non power- limited output.

  • Input
    • Nominal 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A.
    • Input fuse rated @ 3.5A/250V.
  • Output
    • 24VDC output.
    • 10A of continuous supply current for Access Control applications.
    • 8A of continuous supply current for Fire Alarm applications.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating 0ºC to 49ºC (32ºF to 120ºF).
    • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.
    • System AC input VA requirement: 550VA.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/12AH Batteries.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 9.25 Lbs. (4.2 kg).
  • Shipping Weight: 11.55 Lbs. (5.24 kg).
Print
*Batteries sold separately
