AL400PD4CB220

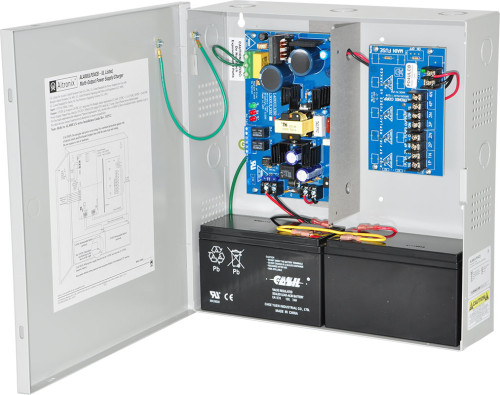

Power Supply Charger, 4 PTC Class 2 Outputs, 12/24VDC @ 4A, 220VAC, BC300 Enclosure

AL400PD4CB220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into four (4) 12VDC or 24VDC outputs.

  • Input
    • Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A.
    • Input fuse rated @ 3.5A/250V.
  • Output
    • 12VDC or 24VDC selectable output.
    • 12VDC @ 4A or 24VDC @ 3A supply current.
    • Four (4) PTC protected outputs (auto-resettable).
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.7A.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70°C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 37 BTU/Hr.
    • System AC input VA requirement: 330VA.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 7.1 Lbs. (3.22 kg).
  • Shipping Weight: 8.9 Lbs. (4.04 kg).
Print
*Batteries sold separately
