MaxFit3F8AP

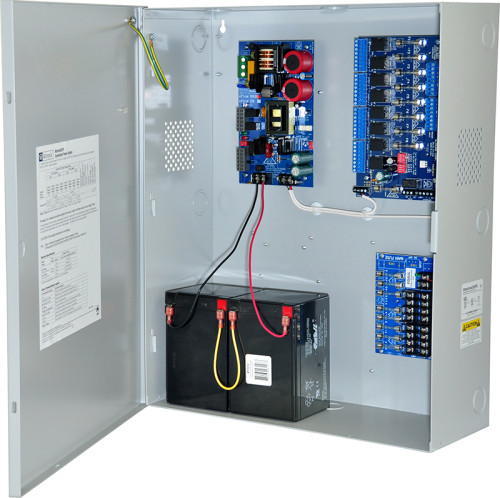

Access Power Controller Kit - BC750 enclosure with eFlow6NB, ACM8, PD8UL

Altronix MaxFit3F8AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into eight (8) distributed 12VDC or 24VDC fuse protected outputs and eight (8) independently controlled 12VDC or 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) relay outputs.

  • eFlow6NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC or 24VDC selectable.
        • Current: 6A continuous.
      • Outputs
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Fuse Rating: 10A/32VDC.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units or 71-73% for 12V units. Prevents deep battery discharge.
  • Indicators (LED)
    • AC Input: 120VAC is present.
    • DC Output: Powered.
  • PD8UL Power Distribution Module
      • Input
        • Voltage: 12VDC or 24VDC from eFlow6NB.
      • Outputs
        • Voltage: 12VDC or 24VDC.
        • Eight (8) fuse protected outputs.
        • 3.5A per output max.
        • Output Fuses: 3.5A/32VDC.
      • Indicators (LED)
        • Green LED: DC Output.
  • ACM8 Access Power Controller
      • Input
        • Voltage: 12VDC or 24VDC from eFlow6NB.
        • Main Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC or 24VDC.
        • Eight (8) independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output Fuses: 3.5A / 32VDC.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 50° C (32° F to 122° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 41 BTU/Hr.
        • 24VDC: 77 BTU/Hr.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Weights (approximate):
  • Product Weight: 26.9 Lbs. (12.2 kg).
  • Shipping Weight: 32.9 Lbs. (14.9 kg).
Print
*Batteries sold separately
*Mounting hardware included.
