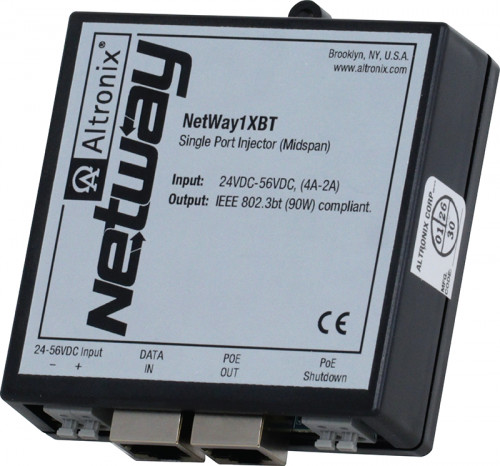

NetWay1XBT

Single Port 802.bt PoE Injector for Standard Network Infrastructure

Altronix NetWay1XBT single port 802.3bt compliant power injector provides power and passes data (e.g. video) for PoE compliant devices.

  • Input
    • 24VDC-56VDC (4A-2A) for total 90W power
  • Output
    • Unit provides 802.3bt PoE, up to 90W max.
    • Short circuit protection
  • Ethernet
    • Wire type: 4-pair CAT5e
  • Indicators (LED)
    • PoE LED: PoE present
  • Features
    • Auto detection and protection of legacy non-PoE cameras/devices
    • Dry contact PoE Shutdown
    • Lightweight molded compact insulated housing
  • Temperature
    • Operating (90W): - 30ºC to 70ºC (- 22ºF to 158ºF).
    • Storage: - 20ºC to 70ºC (- 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 3,048m.

CE Compliant
Name Description
DCL2 DIN Rail Mounting Clip
Dimensions (approximate):
  • 3.5"W x 3.5"L x 1"H (88.89 mm W x 88.89 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.3 Lbs. (0.14 kg).
