NetWay4ELWPX

Single 1G Fiber SFP, 4 ports 10/100/1000 PoE/PoE+ (up to 30W); Hardened (75W) Power Supply/Optimized LiFePO4 Battery Charger & Switch Boards mounted in larger NEMA4/4X, IP66 rated Outdoor enclosure; LINQ

Altronix NetWay4ELWPX PoE+ Outdoor Hardened Switch provides one (1) 1Gb SFP (Fiber) port and four (4) PoE+ (30W) ports passing data for PoE/PoE+ compliant devices. Cameras/ edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere. This unit is designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.

  • Input
    • 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
    • Input Fuse: 5A/250V
  • Power Output
    • Maximum Power: Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports
    • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
    • 75W total power.
    • (Note: connected devices in total not to exceed 75W).
    • Integral surge protection.
  • Fiber Port
    • One (1) Gigabit SFP port.
    • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
  • Ethernet Ports
    • 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair Cat-5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Built-in charger for 12V LiFePO4 (Lithium Iron Phosphate) battery.
    • Caution: Do not use lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • (Batteries are sold separately).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100/1000Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • LINQ Technology
    • Remote network management allows for camera/device reset and monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time diagnostics.
    • Event log tracks history.
  • Temperature
      • Operating:
        • 60W: - 40° C to 75° C ( - 40° F to 167° F).
        • 75W: - 40° C to 70° C ( - 40° F to 158° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

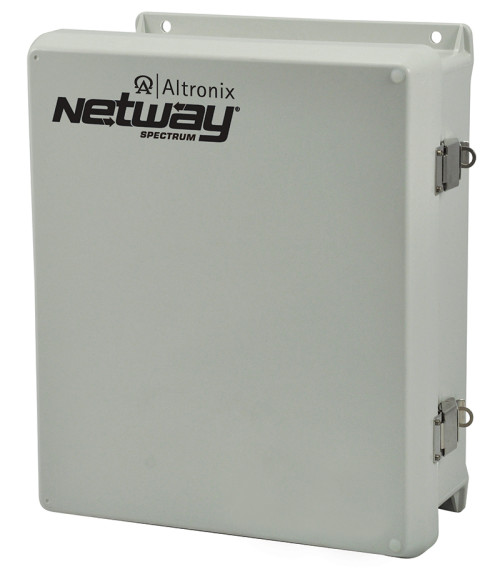

Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weight: 15 Lbs. (6.7 kg).
  • Shipping Weight: 17.5 Lbs. (7.9 kg).
