NetWay5P

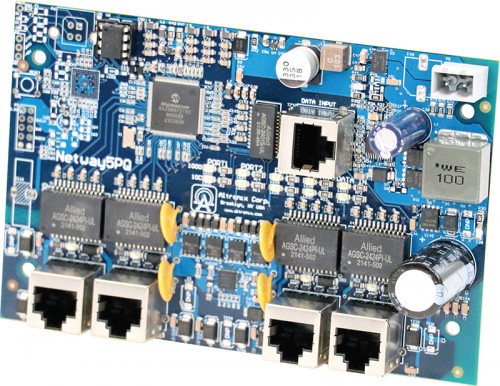

Unmanaged Network 5-Port Hardened PoE+ Switch Board

For managed switch see model NetWay5PQ

Altronix Netway5P is a space-saving hardened PoE+ switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, providing power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include solar power, as well as integrating network door access systems with video surveillance.

  • Input Power
    • 12 or 24VDC from a UL Listed power source or a solar panel with nominal 24V (~12-35V) output.
    • Power Consumption: 6W (0.25A@24V or 0.5A@12V)
  • Power Output
      • Maximum Power
        • Four (4) 10/100/1000 Mbps
        • PoE/PoE+ (rated up to 30W) ports 60W (at 12VDC) or 120W (at 24VDC) total power
        • Integral surge protection
      • Uplink Port
        • Single data port
  • Ethernet Ports
    • Five (5) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5 or better structured cable
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • LED Indicators
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
  • Temperature
    • Operating: - 30ºC to 70ºC (- 22ºF to 158ºF).
    • Storage: - 40ºC to 85ºC (- 40ºF to 185ºF).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: -304.8 to 2,000m.
  • Operating Altitude
    • - 304.8 to 2,000m.
  • Mounting hardware is included

    CE Compliant
    Dimensions (approximate):
    • 3.6"W x 5.9"L x 0.75"H (91.4 mm W x 150 mm L x 19 mm H).
    Weights (approximate):
    • Product Weight: 0.25 Lbs. (0.11 kg).
    • Shipping Weight: 0.75 Lbs. (0.34 kg).
