NetWay5PWPN

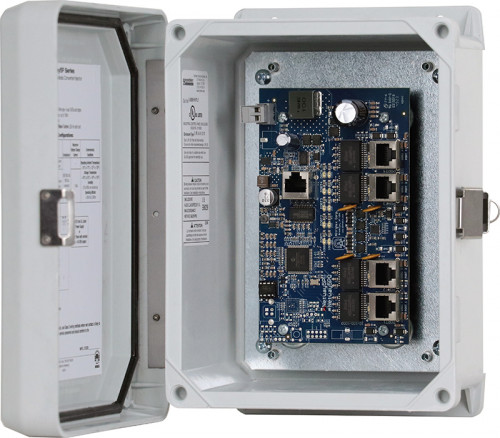

5-port Hardened PoE+ Switch - NEMA4/4X rated Outdoor enclosure WP4

For managed switch see model NetWay5PQWPN.

Altronix Netway5PWPN hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include solar power, as well as integrating network door access systems with video surveillance.

  • Input Power
    • 12 or 24VDC from a UL Listed power source or a solar panel with nominal 24V (~12-35V) output.
    • Power Consumption: 6W (0.25A@24V or 0.5A@12V)
  • Power Output
      • Maximum Power
        • Four (4) 10/100/1000 Mbps
        • PoE/PoE+ (rated up to 30W) ports 60W (at 12VDC) or 120W (at 24VDC) total power
        • Integral surge protection
      • Uplink Port
        • Single data port
  • Ethernet Ports
    • Five (5) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5 or better structured cable
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • LED Indicators
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
  • Temperature
    • Operating: - 30ºC to 70ºC (- 22ºF to 158ºF).
    • Storage: - 40ºC to 85ºC (- 40ºF to 185ºF).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: -304.8 to 2,000m.
  • Operating Altitude
    • - 304.8 to 2,000m.
  • Mounting hardware is included

    CE Compliant
    Enclosure:
    • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
    • Dimensions 7.32"W x 9.5"H x 4.92"D (185.9 mm W x 236.7 mm H x 125 mm D).
    Weights (approximate):
    • Product Weight: 2.2 Lbs. (1 kg).
    • Shipping Weight: 3.2 Lbs. (1.45 kg).
