NetWaySP1BT2WPX

Dual 1G Fiber Optic SFP, single port 10/100/1000 802.3bt 4PPoE (90W max), Power Supply/BatChr & Media Converter mounted in NEMA4/4X, IP66 rated Outdoor enclosure

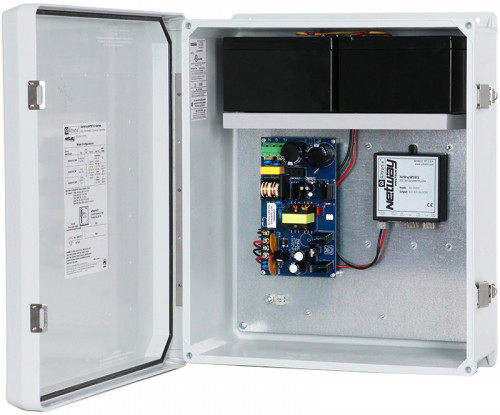

Altronix NetWaySP1BT2WPX Outdoor 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates two (2) Fiber (1000Base-X/SX/LX) or structured cables to transmit data. Units can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). Cameras/edge devices may be located up to 100m from the unit. NEMA 4/4X IP66-11 enclosure accommodates four (4) 12VDC/4AH batteries (48V of backup).

  • Input
    • Power: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A
    • Input Fuse: 5A/250V
  • Fiber Ports
    • Dual 1Gb SFP ports (Daisy-chain communication)
  • PoE Port
    • Single port rated up to 90W max.
    • IEEE 802.3af, 802.3at and 802.3bt compliant
  • Data Port
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps
  • Battery Charging
    • Capacity: 4AH/12VDC (4 within enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Indicators (LED)
      • Yellow/Green RJ45 LEDs:
        • Yellow: 10/100
        • Green: 10/100/1000
      • Green PoE LED:
        • PoE present.
      • Green SFP (Fiber) LED:
        • SFP connection.
  • Features
    • Auto detection and protection of legacy non-PoE cameras/devices.
  • Temperature
      • Operating Temperature:
        • 60W: - 40ºC to 75ºC (- 40ºF to 167ºF).
        • 80W: - 40ºC to 70ºC (- 40ºF to 158ºF).
        • 90W: - 40ºC to 60ºC (- 40ºF to 140ºF).
    • Storage Temperature: - 40ºC to 85ºC (- 40ºF to 185ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Accommodates up to four (4) 12VDC/4AH Batteries.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weight: 15 Lbs. (6.8 kg).
  • Shipping Weight: 17.5 Lbs. (7.9 kg).
Print
*Batteries sold separately
