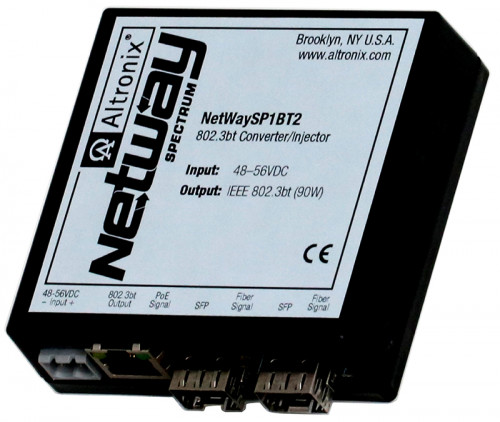

NetWaySP1BT2

Single Port Ethernet to Fiber Hardened 802.3bt 4PPoE Switch/Media converter, Dual 1G Fiber Optic SFP, single port 10/100/1000, Supports 90W, Requires 48-56V input, Modular plastic case

Altronix NetWaySP1BT2 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates two (2) fiber optic cables (1Gb) to transmit data. Units can be deployed with structured cable and conventional single/multimode fiber. Cameras/edge devices may be located up to 100m from the unit.

  • Input
    • 48-56VDC @ 1.9A (95W)
  • Fiber Port
    • Dual 1Gb SFP ports (Daisy-chain communication)
  • PoE Port
    • Single port rated up to 90W max
    • IEEE 802.3af, 802.3at and 802.3bt compliant
    • 10/100/1000
  • Indicators (LED)
      • Yellow/Green LEDs:
        • IP Link status, 10/100/1000 Base-T/active
      • Green PoE LED:
        • Indicate PoE present.
      • Green SFP (Fiber) LED:
        • Indicates SFP connection.
  • Features
    • Auto detection and protection of legacy non-PoE cameras/devices
    • Compact insulated housing
  • Temperature
    • Operating (90W): – 40ºC to 75ºC (– 40ºF to 167ºF)
    • Storage: – 40ºC to 75ºC (– 40ºF to 167ºF)
  • Relative Humidity
    • 85% +/– 5%
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • Modular plastic case.
  • Dimensions 3.8"W x 1"H x 3.38"D (97 mm W x 25 mm H x 86 mm D).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.3 Lbs. (0.14 kg).
