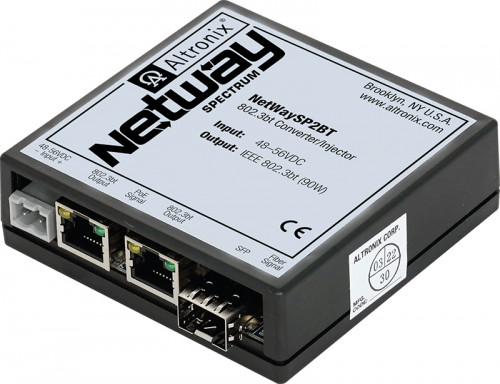

NetWaySP2BT

2-Port Ethernet to Fiber Hardened 802.3bt 4PPoE Switch/Media converter, Single 1G Fiber Optic SFP, Dual ports 10/100/1000, Supports 90W, Requires 48-56V input, Modular plastic case

Altronix NetWaySP2BT 802.3bt media converter/injector provides two (2) 802.3bt (4PPoE) ports up to 180W total and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Unit can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined).
Cameras/edge devices may be located up to 100m from the unit.

  • Input
    • 48-56VDC @ 3.5A (180W).
  • Fiber Port
    • One (1) 1Gb SFP port.
  • PoE/Data Ports
    • Two (2) ports rated up to 90W max. each.
    • IEEE 802.3af, 802.3at and 802.3bt compliant
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e
    • Distance: up to 100m
    • Speed: 10/100/1000 Mbps
  • Indicators (LED)
      • Yellow/Green LEDs:
        • IP Link status, 10/100/1000 Base-T/active.
      • Green PoE LED:
        • PoE present.
      • Green SFP (Fiber) LED:
        • SFP connection.
  • Features
    • Auto detection and protection of legacy non-PoE cameras/devices.
    • Compact insulated housing.
  • Temperature
    • Operating (180W): – 40ºC to 75ºC (– 40ºF to 167ºF)
    • Storage: – 40ºC to 75ºC (– 40ºF to 167ºF)
    • Relative Humidity: 85% +/– 5%
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • Modular plastic case.
  • Dimensions 3.8"W x 1"H x 3.38"D (97 mm W x 25 mm H x 86 mm D).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.3 Lbs. (0.14 kg).
