Pace1KLDC

Single Pair Ethernet Media Adapter, IEEE 802.3cg Ethernet, 10Base-T1L SPE over UTP

For adapter powered via POE midspan/endspan, see model Pace1KLDC

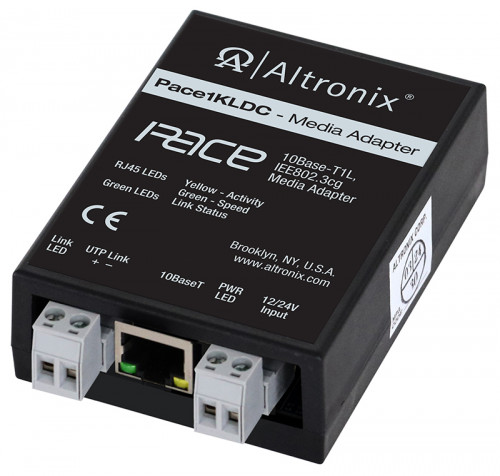

Altronix Pace1KLDC is a SPE (Single Pair Ethernet) media converter/adapter that enables connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/ Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.).
In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

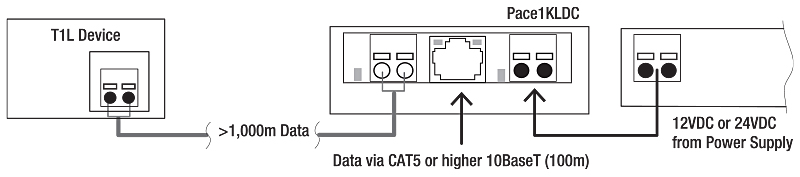

Operationally, the Pace1KLDC is powered via 12/24VDC or 12/24VAC at the headend, ethernet connection to the switch transmitting network data (10BaseT), and single pair Ethernet connection up to 1km (1,000m, 3,280 ft.) to the remote T1L device.

  • Input
    • Powered via 12/24VDC or 12V/24VAC.
  • SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link
    • Wire type: Twisted pair (2-wire, UTP).
    • Distance: 1km (1,000m, 3,280 ft.) @ 10Mbps
  • Ethernet/Data Port
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or higher.
    • Distance: up to 100m.
    • Speed: 10 BaseT, half/full duplex, auto negotiation.
  • LED Indicators
      • Green LED:
        • Data transmission (link) over SPE
      • Red LED:
        • Power (12/24VDC)
      • Yellow and Green LED (RJ45 jack):
        • IP Link status, 10/100Base-T/active.
  • Electrical
      • Temperature:
        • Operating: – 40º C to 75º C (– 40º F to 167º F).
        • Storage: – 40º C to 75º C (– 40º F to 167º F).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: – 304.8 to 2,000m.
Name Description
DCL2 DIN Rail Mounting Clip
Enclosure:
  • Dimensions 5.2"W x 1.7"H x 8.4"D (132 mm W x 43 mm H x 213 mm D).
Weights (approximate):
  • Product Weight: 0.22 Lbs. (0.1 kg).
  • Shipping Weight: 0.4 Lbs. (0.18 kg).

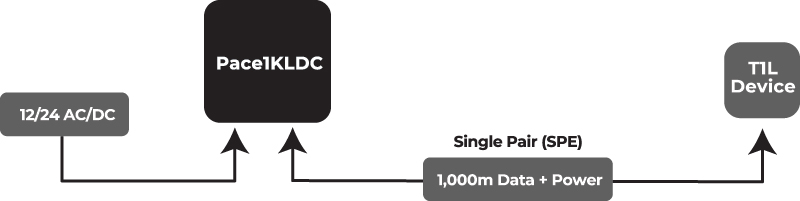

App Drawing
