Pace3KL

Three Port Single Pair Ethernet Media Adapter Switch, IEEE 802.3cg Ethernet, 10Base-T1L SPE over UTP

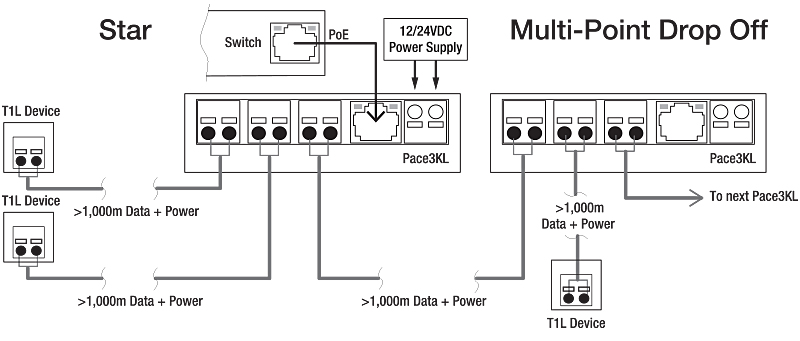

Altronix Pace3KL is a SPE (Single Pair Ethernet) 3-port T1L Media Adaptor/Switch that enables connecting up to three (3) 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend switch to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.). The Pace3KL can be used in a typical star configuration or as a multipoint dropoff node configuration.

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

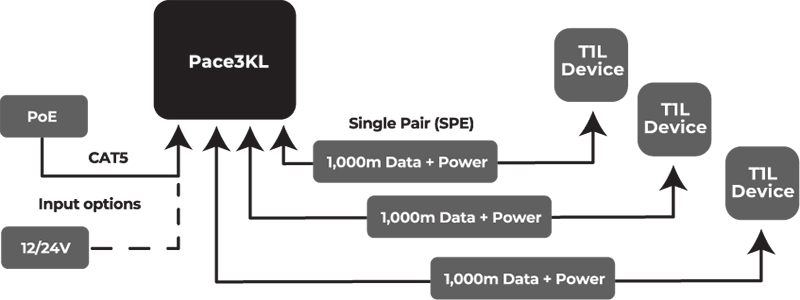

Operationally, the Pace3KL is connected to a PoE midspan/endspan switch at the headend and can be powered by the PoE port or 12/24VDC power supply. Pace3KL passes network data and power from the switch via UTP up to 1km (1,000m, 3,280 ft.) to the remote T1L devices.

  • Input
    • Can be powered either by
    • - PoE midspan or endspan or
    • - 12/24V power supply
    • If both power sources are used, external 12/24V power supply will be preferenced to optimize power usage
  • SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link
    • Three (3) 10Base-T1L ports
    • Wire type: Twisted pair (2-wire, UTP)
    • Distance: 1km (1,000m, 3,280 ft.) @ 10Mbps
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or higher.
    • Distance: up to 100m from midspan.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
  • LED Indicators
      • Yellow and Green LED (by RJ45 jack):
        • IP Link status, 10/100Base-T/active
  • Electrical
      • Temperature:
        • Operating: – 40º C to 75º C (– 40º F to 167º F).
        • Storage: – 40º C to 75º C (– 40º F to 167º F).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: – 304.8 to 2,000m.

CE Compliant
Enclosure:
  • Modular plastic case. VB6
  • Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Weights (approximate):
  • Product Weight: 0.22 Lbs. (0.1 kg).
  • Shipping Weight: 0.4 Lbs. (0.18 kg).
