T2SFK74D

4-Door Altronix/Swiftlane Access and Power Integration Kit - Trove2SF2 with AL1024ULXB2, PD4ULCB, NetWay5A

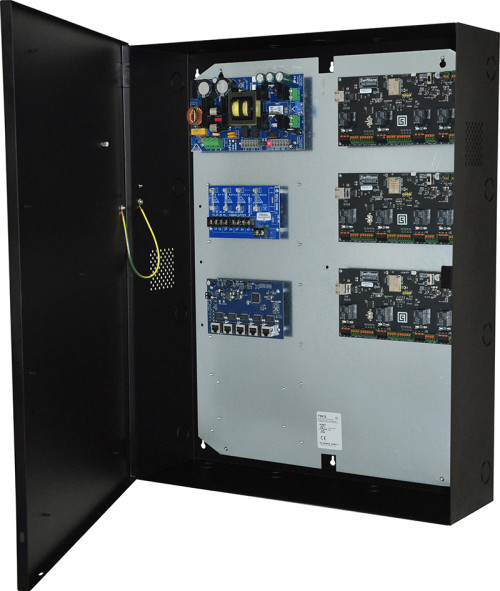

Altronix T2SFK74D kit consists of Trove2 enclosure, TSF2 Swiftlane/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 5-port hardened switch and one (1) 4-output PTC power distribution module.
This kit also accommodates up to three (3) Swiftlane Controls Door Controller 5 (SL-DCU-5) boards. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • AL1024ULXB2 Power Supply/Charger
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
  • Indicators LED
    • Input: 115VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • NetWay5A 5-Port Hardened Switch
      • Input Power
        • PoE (53.5V), current draw: 1.8W
        • 12VDC, current draw: 150mA
        • 24VDC, current draw: 75mA
      • Output
        • Five (5) data ports.
      • Ethernet Ports:
        • Five (5) 10/100 Mbps ports.
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Individual PoE On LEDs for each port.
        • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • PD4ULCB Power Distribution Module
      • Input
        • Voltage: 24VDC from AL1024ULXB2.
      • Outputs
        • Voltage: 24VDC.
        • Four (4) PTC protected outputs. 3.5A per output max.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • Green LED: DC Output.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 131 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TSF2 1 Trove2 Backplane for Altronix/Swiftlane
AL1024ULXB2 1 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
PD4ULCB 1 Power Distribution Module, 4 PTC Outputs up to 28VAC/VDC, Board
NetWay5A 1 5-Port Hardened Switch Board
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 52.3 Lbs. (23.7 kg).
  • Shipping Weight: 57.3 Lbs. (26 kg).
Print

Access controllers not included

*Batteries sold separately
