T3AXK77F16SDQV

16-Door Altronix/Axis Access and Power Integration Kit - Trove3V3 with (2) eFlow104NBV, (2) LINQ8ACMCB, (2) VR6, (2) PDS16CB

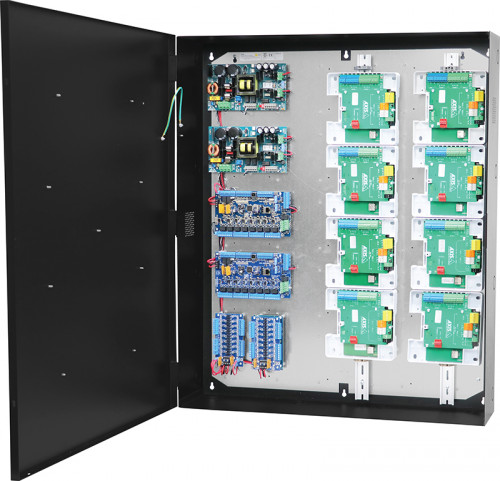

Altronix T3AXK77F16SDQV kit consists of Trove2 enclosure, TV3 Axis Communications/ Altronix backplane with two (2) 24VDC @ 10A power supply/charger, two (2) eight (8) PTC protected networked dual input/output access control modules, two (2) 12VDC voltage regulators and two (2) sixteen (16) PTC protected dual input/output power distribution modules. This kit also accommodates up to eight (8) A1601 or A1610 or sixteen (16) A1210 modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Two (2) eFlow104NBV Power Supply/Chargers
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A
        • Main Fuse: 6.5A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Current: 10A continuous.
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 220VAC is present
    • DC Output: Powered
  • Two (2) VR6 Voltage Regulators
      • Input
        • Voltage: 24VDC from eFlow104NBV.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • Two (2) PDS16CB Dual Input Power Distribution Modules
      • Input
        • Voltage: 24VDC from eFlow104NBV and 12VDC from VR6.
        • Input PTCs: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • DC Output: Sixteen (16) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • Two (2) LINQ8ACMCB Networked Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow104NBV and 12VDC from VR6
        • Input PTC: 9A
      • Outputs
        • PTC protected outputs
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Output PTCs:
        • 2.5A
  • Programming Features:
      • Eight (8) Programmable Outputs:
        • - Fail-safe, fail-secure or auxiliary outputs
        • - Input controlled or manually controlled through software
        • - High (over) and low (under) voltage and current monitoring by output
        • - Multiple outputs may be programmed to be triggered by a single input
        • - Battery back-up by output
      • Eight (8) Programmable Trigger Inputs:
        • - Normally open (NO), Normally closed (NC) or Open collector sink inputs
        • - Wet Input (5VDC - 24VDC) with 10k resistor
        • - Any combination of the above
      • Other Programmable Trigger Inputs:
        • - Monitor power supply(ies) input for voltage and current limits (high/low)
        • - Input and output current calibration, Programmable timer events
        • - Programmable user levels, Enable or disable alerts by type
        • - Programmable alert reporting delay
      • Indicators (LED)
        • Green AC LED: indicates AC trouble condition
        • Green BAT LED: indicates battery trouble condition
        • Green FACP LED: indicates FACP disconnect is triggered
        • Flashing Blue Heartbeat LED: indicates network connection
        • Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered
        • Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 246 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TV3 1 Trove3 Backplane for Altronix/HID-Vertx
eFlow104NBV 2 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
LINQ8ACMCB 2 Network Access Power Controller, 8 PTC Class 2 power-limited Outputs, Board
VR6 2 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
PDS16CB 2 Dual Input Power Distribution Module, 16 PTC Outputs
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 84.2 Lbs. (38.2 kg).
  • Shipping Weight: 97.5 Lbs. (44.2 kg).
Print

Access controllers not included

*Batteries sold separately
