TV150

Compact Enclosure supports HID/AERO controller and Altronix power Adapter

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

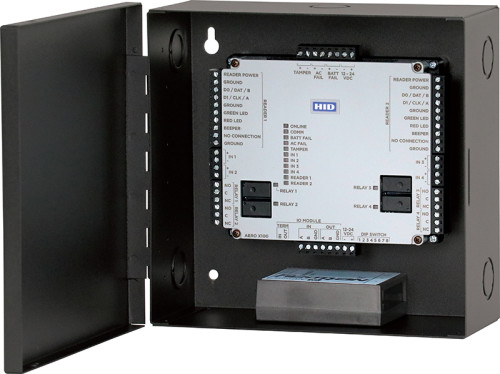

Altronix TV150 accommodates a single HID VertX/Aero module with or without the case for access systems. It features ample knockouts that are suitable for 0.5” and 0.75” conduit.

TV150 Enclosure accommodates the following HID VertX/Aero modules: (sold separately):
- One (1) V100, V200, V300, V1000, V2000, X100, X200, X300 or X1100
TV150 Enclosure
- Simplifies board layout and wire management
- Convenient knockout configuration: Six (6) double knockouts (accommodate 0.5” and 0.75” conduit)
- 16 AWG powder coated steel
- Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

Name	Description
NetWay3012	PoE Adapter, Converts PoE+ into 12VDC @ 30W
NetWay3012P	PoE Adapter, Converts PoE/PoE+ into 12VDC
NetWay3024	PoE Adapter, Converts PoE+ into 24VDC @ 25W
NetWay3024P	PoE Adapter, Converts PoE/PoE+ into 24VDC

Enclosure:

Compact Enclosure for Altronix Power and Mercury Boards
Dimensions 8.5"W x 7.5"H x 3.5"D (215.9 mm W x 190.5 mm H x 88.9 mm D).
Six (6) double knockouts accommodate 0.5” and 0.75” conduit).
