Tango8A

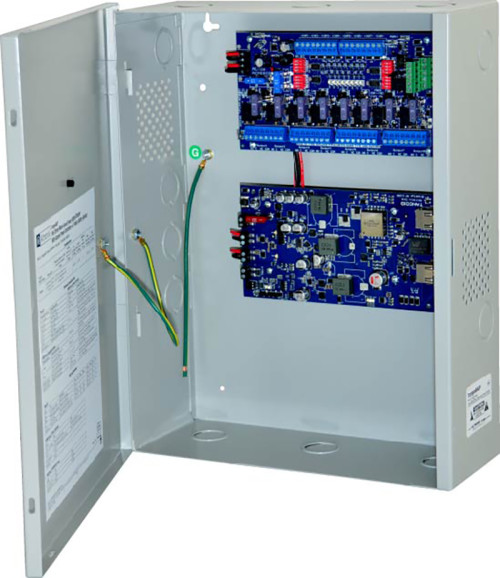

Access Power Controller with PoE Driven Power Supply/Charger, BC400 Enclosure

Altronix Tango8A PoE Driven Power Supply with Access Power Controller converts an IEEE802.3bt PoE input into eight (8) regulated 24VDC and/or 12VDC outputs up to 65W. It eliminates the need for a high voltage inside of an enclosure. Tango8A is designed to support a single 12VDC LiFePO4 (Lithium Iron Phosphate) battery for 12VDC and 24VDC backup.

  • Ethernet Input
    • 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)
  • Power Output (when using 802.3bt 90W)
    • 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W).
    • Combined output not to exceed 65W.
      • When charging batteries:
        • 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
        • Combined output not to exceed 55W.
  • Ethernet Output
    • Pass-through Ethernet Port (data only).
  • Battery Charging
    • 12VDC battery charger for Lithium Iron Phosphate Battery (LiFePO4 only).
    • Unique technology allows for single battery to backup 12VDC and/or 24VDC systems.
    • (Batteries are sold separately).
  • Supervision
    • Loss of PoE Input.
    • Battery Supervision.
  • Indicators (LED)
    • Input: Indicates input voltage is present.
    • Output: Indicates normal operating condition.
    • PoE Type: PoE Class Indicator
    • Supervision: PoE Fail or BAT Fail.
  • ACMS8/ACMS8CB Access Power Controller:
      • Inputs
        • 12VDC and 24VDC from Tango1B, factory wired.
        • Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized
        • Main Fuse Rating 15/32A.
      • Trigger Inputs
        • Eight (8) individually controlled trigger inputs:
        • a) Normally open (NO) inputs.
        • b) Normally closed (NC) inputs.
        • c) Open collector sink inputs.
        • d) Wet Input (5VDC - 24VDC) with 10K resistor.
        • e) Any combination of the above.
      • Outputs
        • Eight (8) Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
  • Output Ratings
    • Fuses are rated 2.5A each, PTCs are rated at 2A.
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching, individually selectable for any or all of the eight (8) outputs.
    • EOL: 10K Resistor.
  • Indicators (LED)
    • Red LEDs: Outputs are triggered (relays energized).
    • Blue LED FACP disconnect is triggered.
      • Individual voltage LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 54 BTU/Hr.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 9.7 Lbs. (4.08 kg).
  • Shipping Weight: 11 Lbs. (4.67 kg).
