Trove1BL1R

Blank/Customizable Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series

Altronix Trove1BL1R can be customized to accommodate various combinations of access control and power supply boards and accessories for access control systems. TBL1R backplane is blank, which allows for ultimate flexibility in configuration.

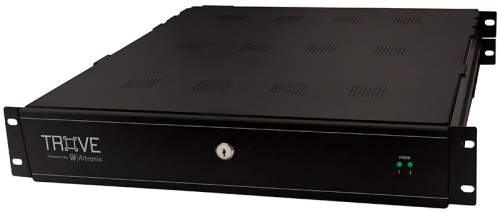

Trove1R rack mount enclosure with TBL1R Altronix backplane.
- - Accommodates any manufacturer’s boards and equipment.
- Includes Altronix Trove1R Rack Enclosure and one (1) removable TBL1R backplane.
Trove1R Enclosure
- 16 Gauge black powder coated steel enclosure with ample knockouts for convenient access.
- Includes: tamper switch, cam lock and mounting hardware. Modular 2U standard EIA 19” drawer with extendable slides up to 48”.
- IEC320 connector.
- Included Z Bracket facilitates ease of wiring.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

Name	Description
MM8	Mounting Magnets, Eight (8) Quantity per Pack
MM4	Mounting Magnets, Four (4) Quantity per Pack
MM24	Mounting Magnets, Twenty Four (24) Quantity per Pack
MM12	Mounting Magnets, Twelve (12) Quantity per Pack
RE2	Rack Mount Battery Enclosure, 2U
WM100	Magnetic Cable Tie Mounts
WM25	Magnetic Cable Tie Mounts
WM5	Magnetic Cable Tie Mounts

Enclosure:

Trove Rack Mount Enclosure
Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
Rails extend to 36" (914.4mm). Ample knockouts for convenient use.
