Trove1V1R

Altronix/HID-Vertx/HID-Aero Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series

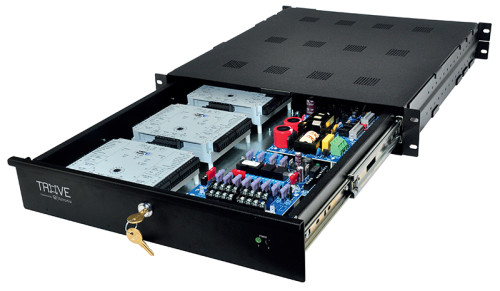

Altronix Trove1V1R consists of a high-capacity rack enclosure with removable backplane. This unit easily combines Altronix power/accessories with various combinations of HID VertX / HID Aero boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.

  • Trove1R rack mount enclosure with TV1R backplane.
      • Accommodates the following HID VertX® or HID Aero® controllers with or without Altronix power/accessories:
        • - HID Vertx® V100, V200, V300, V1000, V2000 / HID Aero® X100, X200, X300, X1100 and Genetec Synergis Cloud Link;
        • - Altronix Power Supplies;
        • - Altronix Sub-Assemblies.
        • Includes Altronix Trove1R Rack Enclosure and one (1) removable TV1R backplane.
  • Trove1R Enclosure
    • 16 Gauge black powder coated steel enclosure with ample knockouts for convenient access.
    • Includes: tamper switch, cam lock and mounting hardware. Modular 2U standard EIA 19” drawer with extendable slides up to 48”.
    • IEC320 connector.
    • Included Z Bracket facilitates ease of wiring.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Enclosure:
  • Trove Rack Mount Enclosure
  • Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm). Ample knockouts for convenient use.
Weights (approximate):
  • Product Weight: 18 Lbs. (8.16 kg).
  • Shipping Weight: 23 Lbs. (10.43 kg).
Configure Trove Print

Boards not included
