Trove3MBK3

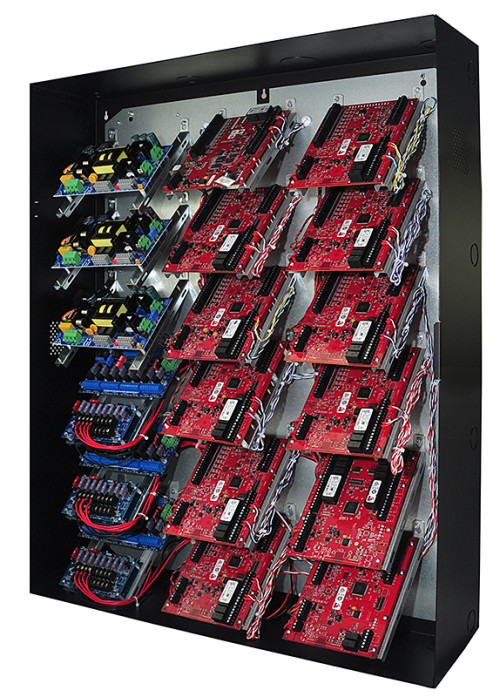

Altronix & Mercury Access and Power Integration Enclosure with TM3B backplane. Includes 36-BR3M mounting brackets, Trove3 Series

Altronix Trove3MBK3 lets you easily integrate Altronix power and sub-assemblies with Mercury* platform controllers for up to 24-doors with power or 36-doors without power. This unit includes 36-BR3M unique mounting brackets offering system flexibility. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • Trove3 enclosure with TM3B Altronix & Mercury backplane
      • Backplane accommodates the following Mercury access controllers with or without Altronix power/accessories:
        • - Mercury: LP4502, LP1502, MR16IN, MR16OUT, MR52, LP2500, MUX8
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove3 Enclosure and one (1) removable TM3B backplane and thirty-six (36) BR3M mounting brackets.
  • Trove3 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - One (1) double knockout 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TM3B 1 Trove3 Backplane for Altronix/Mercury
BR3M2PK 36 Angled Brackets for Trove3MB3
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 90 Lbs. (40.8 kg).
  • Shipping Weight: 102 Lbs. (46.3 kg).
Configure Trove Print
Security Today 2022 Product of the Year

Boards not included

*Batteries sold separately
