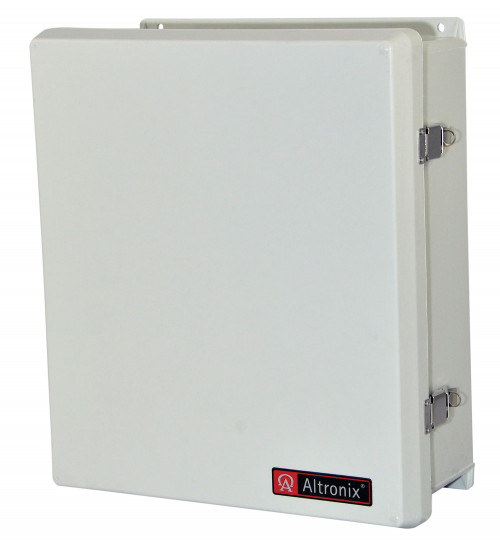

WP5

NEMA 4/IP 66 Rated Power Supply/Battery Outdoor Enclosure, 19.31”H x 17.32”W x 9.58”D

Altronix WP5 is a UL Listed, NEMA 4/IP 66 Rated outdoor power supply/battery and accessory enclosure with a metal backplane. It can accommodate a wide variety of Altronix power supplies, sub-assemblies, and other accessories.

  • Features
    • Hot compression molded, halogen free, self extinguishing fiberglass reinforced polyester
    • Stainless steel continuous hinge and stainless steel padlock-able latches
    • Integral flanges simplify wall or pole mounting
    • Includes metal backplane for mounting power and accessories.
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 17.32"W x 19.49"H x 9.58"D (439.9 mm W x 495 mm H x 243.3 mm D).
Weights (approximate):
  • Product Weight: 18 Lbs. (8.2 kg).
  • Shipping Weight: 20.5 Lbs. (9.3 kg).
Print
*Batteries sold separately
