eBridge100RM

EoC or Long Range Ethernet Single Port Receiver, 100Mbps, Passes PoE/PoE+, Requires Compatible Transceiver

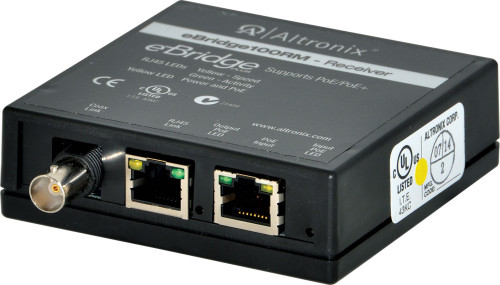

eBridge100RM is a versatile dual solution Ethernet receiver/media converter which transmits data at 100Mbps full duplex and power over Coax cable or extended CAT5e cable in a PoE+ compliant format. The eBridge100RM is powered via a PoE midspan such as the Altronix NetWay series or by an endspan. The receiver passes the PoE(+) compliant power over cable to the eBridge100TM/eBridge100ST transceiver which in turn passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over existing coax or structured cable.

  • Input
    • Powered by midspan or endspan.
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5.
    • Distance: up to 500m.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge100TM. Power provided by eBridge100RM to eBridge100TM by PoE protocol.
    • Throughput is rated to pass 100Mbps of data at distances up to 500m.
  • Coax link
    • Distance: Coax 300m for power delivery.
    • Connectivity: BNC, RG-59/U or similar.
  • Coax or CAT5e link
    • Distance: CAT5e up to 500m, Coax 300m for power delivery.
  • LED Indicators
      • eBridge100RM and eBridge100TM:
        • Yellow - PoE ON (by respective RJ45 jack).
        • eBridge100RM and eBridge100TM:
        • Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
  • Temperature
      • Operating Temperature:
        • eBridge100RM: -20ºC to 49ºC ( -4ºF to 120.2ºF).
        • eBridge100TM: -20ºC to 49ºC ( -4ºF to 120.2ºF).
        • eBridge100ST: For 15W: -40ºC to 75ºC ( -40ºF to 167ºF); For 30W: -40ºC to 60ºC ( -40ºF to 140ºF).
      • Storage Temperature:
        • -30º to 70ºC (-22º to 158ºF).
        • Relative humidity: 85%, +/- 5%, non-condensing.
  • Operating Altitude
    • - 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.
UL Listed For:
Information Technology Equipment (UL60950-1)
Download File
cUL Listed For:
Information Technology Equipment
Download File

CE Compliant
Enclosure:
  • Modular plastic case.
  • Dimensions 3.5"W x 4.38"H x 1"D (88.89 mm W x 111.12 mm H x 24.4 mm D).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.4 Lbs. (0.19 kg).
