eFlow104NK1

Dual Output Power Supply/Charger Kit, BC300 Enclosure

Ordering Number: EFLOW104NK1. Kit Contents: EFLOW104N with VR6 UL Listed Sub Assembly.

Altronix eFlow104NK1 sub-assembly kit converts a 120VAC, 60Hz input into one (1) 5VDC or 12VDC selectable output at up to 6A supply current and one (1) 24VDC output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Input
- 120VAC, 60Hz, 4.5A.
- Input fuse: 6.3A/250V.
Output
- 5VDC @ 6A continuous and 24VDC @ 8A continuous or 12VDC @ 6A continuous and 24VDC @ 6A continuous
- Auxiliary Class 2 power-limited output rated @ 1A (unswitched).
- Overvoltage protection.
Battery Charging
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current 1.0A.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
- Transfer to stand-by battery power is instantaneous with no interruption.
- (Batteries are sold separately).
Supervision
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
- AC fail supervision (form “C” contacts).
- Battery fail & presence supervision (form “C” contacts).
Electrical
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.): 123 BTU/Hr.
Visual Indicators
- Green AC Power LED indicates 120VAC present.
- AC input and DC output LED indicators.
Additional Features
- Short circuit and overload protection.

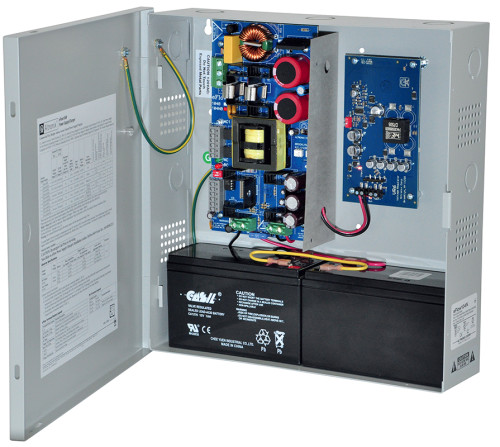

- Unit is complete with power supply, enclosure, battery leads and cam lock.

CE Compliant

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

Name	Description
LINQ2	Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers

Name	Qty	Description
eFlow104NB	1	Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
VR6	1	Voltage Regulator. 24VDC input into 5VDC or 12VDC output
BC300	1	Enclosure, 13.5"H x 13"W x 3.25"D, Grey, 19 Gauge, Indoor
