eFlow104NK8DQP

Networkable Dual Output Power Supply/Charger, 8 PTC protected Auxiliary Class 2 power-limited outputs, 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power), 120VAC, BC400 Enclosure

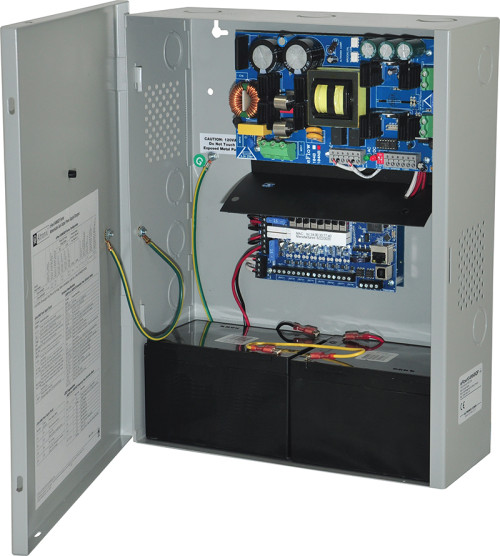

Ordering# EFLOW104NK8DQP Kit Contents: eFlow104NX with VR6 and LINQ8PDCB sub-assemblies

Altronix eFlow104NK8DQP sub-assembly kit converts a 120VAC 60Hz input into eight (8) PTC protected power-limited outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, and ancillary devices. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Networkable power distribution module facilitates monitoring, reporting, and control of the supervised DC power supply/charger over the network. It reports diagnostics via Email and Windows Dashboard Alert notifications, greatly reducing system downtime and eliminating unnecessary service calls.

  • eFlow104NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Input Fuse: 6.3A / 250V.
      • Outputs
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Fuse Rating: 15A @ 32VDC.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • AC Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow104NB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • LINQ8PDCB Network Power Distribution Module
      • Input
        • Voltage: 24VDC from eFlow104NB and 5VDC or 12VDC from VR6.
        • Input Fuse: 15A / 32V.
      • Outputs
        • Eight (8) PTC protected outputs rated 2A.
        • Power output(s) can be locally or remotely controlled.
        • Surge suppresion.
        • Output PTCs: 2A.
      • Status Monitoring
        • Power Supply output voltage and load.
        • Voltage and load of each output.
        • FACP trigger and reset status.
        • Unit temperature (Celsius).
        • Power Supply AC and Battery status.
        • Battery health.
      • Indicators (LED)
        • Bat Local: Charging current status.
        • FACP: Triggered / Released.
        • Input: Input signal.
        • Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
      • Reporting
        • Windows Dashboard Alert messages.
        • E-mail notifications.
        • Event Log tracks history.
      • Programming Features
        • Power Supply(ies) voltage and load limits (High/Low).
        • FACP trigger type (wet or dry-N.O./N.C.).
        • Input Function (FACP reset/tamper).
        • Output Reset Trigger (N.O./N.C.).
        • Battery Monitor Configuration:
        • - Battery condition (Low/Normal/Missing)
        • - Service Date
        • Configurable Output Relay(s).
        • Individual Output Configuration:
        • - Device ID
        • - Voltage and Current Limits (High/Low)
        • - FACP Trigger Setting (latching/non-latching/inactive)
        • - Battery Backup.
      • Fire Alarm Interface
        • Supervised FACP disconnect (Latching or Non-Latching).
        • FACP reset (N.C. or N.O.).
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 123 BTU/Hr.

CE Compliant

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
BC400 1 Enclosure, 15.5"H x 12"W x 4.5"D, Grey, 19 Gauge, Indoor
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
LINQ8PDCB 1 Networkable Power Distribution Module, 8 PTC Outputs, Control, Monitor and Report Individual Output Diagnostics
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 9.4 Lbs. (4.26 kg).
  • Shipping Weight: 10.5 Lbs. (4.76 kg).
