eFlow104NKA8QM

Networkable Dual Output Power Supply/Charger, 8 fuse protected Auxiliary Class 2 power-limited outputs, 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power), 120VAC, BC400 Enclosure

Ordering# EFLOW104NKA8QM Kit Contents: eFlow104NX with VR6 and LINQ8ACM UL Listed sub-assemblies

Altronix eFlow104NKA8QM sub-assembly kit converts a 120VAC 60Hz input into eight (8) fuse protected outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, and ancillary devices. Power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink, normally open (NO), normally closed (NC) dry trigger input, or wet output from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. eFlow104NKA8QM will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. The spade connectors allow you to daisy chain power to multiple LINQ8ACM modules. This feature allows you to distribute the power over more outputs for larger systems. Built-in LINQTM Network Power Management facilitates monitoring, reporting and control of power/diagnostics.

  • eFlow104NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Input Fuse: 6.3A / 250V.
      • Outputs
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Fuse Rating: 10A @ 32VDC.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • AC Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow104NB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • LINQ8ACM Network Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC or 5VDC from VR6.
        • Input Fuses: 15A / 32V.
      • Outputs
        • Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
        • Output Fuses: 3A / 32VDC.
  • Programming Features
      • Eight (8) Programmable Outputs
        • - Fail-safe, fail-secure or auxiliary outputs.
        • - Input controlled or manually controlled through software.
        • - High (over) and low (under) voltage and current monitoring by output.
        • - Multiple outputs may be programmed to be triggered by a single input.
        • - Battery back-up by output.
      • Eight (8) Programmable Trigger Inputs
        • - Normally open (NO).
        • - Normally closed (NC).
        • - Open collector sink inputs.
        • - Wet Input (5VDC - 24VDC) with 10k resistor.
        • - Any combination of the above.
      • Other Programmable Trigger Inputs
        • - Monitor power supply(ies) input for voltage and current limits (high/low).
        • - Input and output current calibration.
        • - Programmable timer events.
        • - Programmable user levels.
        • - Enable or disable alerts by type.
        • - Programmable alert reporting delay.
      • Fire Alarm Disconnect
        • Supervised: Inactive, latching or non-latching, individually selectable for any or all of the eight (8) outputs.
        • EOL: 10K Resistor.
      • LED Indicators
        • Green AC LED: indicates AC trouble condition.
        • Green BAT LED: indicates battery trouble condition.
        • Green FACP LED: indicates FACP disconnect is triggered.
        • Flashing Blue Heartbeat LED: indicates network connection.
        • Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered.
        • Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 123 BTU/Hr.

CE Compliant

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings

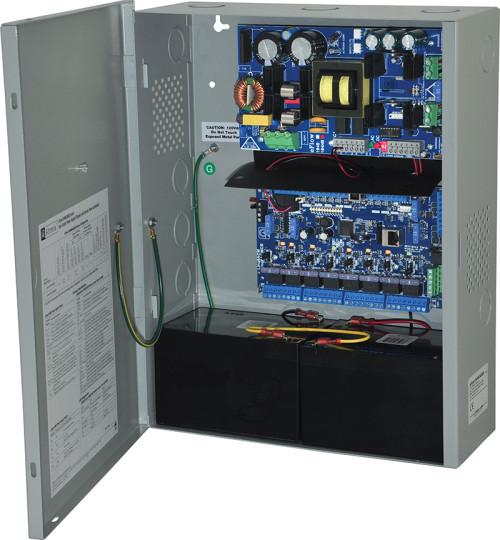

BC400 1 Enclosure, 15.5"H x 12"W x 4.5"D, Grey, 19 Gauge, Indoor
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
LINQ8ACM 1 Network Access Power Controller, 8 Fused Outputs, Board
