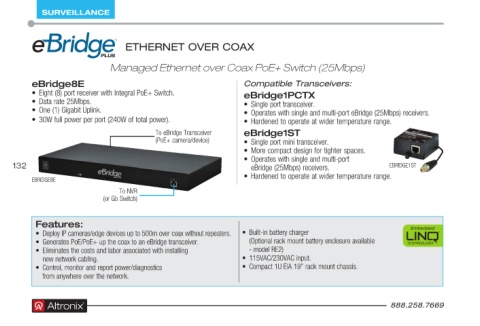

Page 132 - Altronix Product Guide

SURVEILLANCE

ETHERNET OVER COAX

Managed Ethernet over Coax PoE+ Switch (25Mbps)
eBridge8E Compatible Transceivers:
• Eight (8) port receiver with Integral PoE+ Switch . eBridge1PCTX
• Data rate 25Mbps . • Single port transceiver .
• One (1) Gigabit Uplink . • Operates with single and multi-port eBridge (25Mbps) receivers .
• 30W full power per port (240W of total power) . • Hardened to operate at wider temperature range .
To eBridge Transceiver eBridge1ST
(PoE+ camera/device) • Single port mini transceiver .
• More compact design for tighter spaces .
• Operates with single and multi-port
132 eBridge (25Mbps) receivers . EBRIDGE1ST
• Hardened to operate at wider temperature range .
EBRIDGE8E
To NVR
(or Gb Switch)

Features: Embedded
• Deploy IP cameras/edge devices up to 500m over coax without repeaters . • Built-in battery charger ™
• Generates PoE/PoE+ up the coax to an eBridge transceiver . (Optional rack mount battery enclosure available
• Eliminates the costs and labor associated with installing - model RE2)
new network cabling . • 115VAC/230VAC input .
• Control, monitor and report power/diagnostics • Compact 1U EIA 19” rack mount chassis .
from anywhere over the network .

888.258.7669
®
