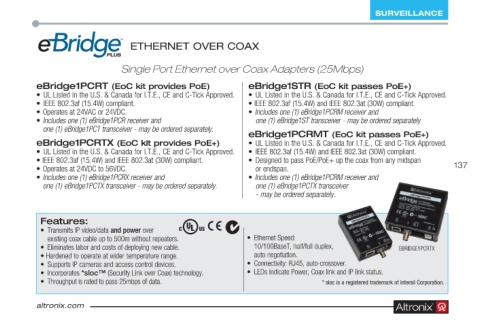

Page 137 - Altronix Product Guide

SURVEILLANCE

ETHERNET OVER COAX

Single Port Ethernet over Coax Adapters (25Mbps)
eBridge1PCRT (EoC kit provides PoE) eBridge1STR (EoC kit passes PoE+)
• UL Listed in the U .S . & Canada for I .T .E ., CE and C-Tick Approved . • UL Listed in the U .S . & Canada for I .T .E ., CE and C-Tick Approved .
• IEEE 802 .3af (15 .4W) compliant . • IEEE 802 .3af (15 .4W) and IEEE 802 .3at (30W) compliant .
• Operates at 24VAC or 24VDC . • Includes one (1) eBridge1PCRM receiver and
• Includes one (1) eBridge1PCR receiver and one (1) eBridge1ST transceiver - may be ordered separately
one (1) eBridge1PCT transceiver - may be ordered separately.
eBridge1PCRMT (EoC kit passes PoE+)
eBridge1PCRTX (EoC kit provides PoE+) • UL Listed in the U .S . & Canada for I .T .E ., CE and C-Tick Approved .
• UL Listed in the U .S . & Canada for I .T .E ., CE and C-Tick Approved . • IEEE 802 .3af (15 .4W) and IEEE 802 .3at (30W) compliant .
• IEEE 802 .3af (15 .4W) and IEEE 802 .3at (30W) compliant . • Designed to pass PoE/PoE+ up the coax from any midspan
• Operates at 24VDC to 56VDC . or endspan . 137
• Includes one (1) eBridge1PCRX receiver and • Includes one (1) eBridge1PCRM receiver and
one (1) eBridge1PCTX transceiver - may be ordered separately. one (1) eBridge1PCTX transceiver
- may be ordered separately.

Features:
• Transmits IP video/data and power over
existing coax cable up to 500m without repeaters . • Ethernet Speed:
• Eliminates labor and costs of deploying new cable . 10/100BaseT, half/full duplex, EBRIDGE1PCRTX
• Hardened to operate at wider temperature range . auto negotiation .
• Supports IP cameras and access control devices . • Connectivity: RJ45, auto-crossover .
• Incorporates *sloc™ (Security Link over Coax) technology . • LEDs indicate Power, Coax link and IP link status .
• Throughput is rated to pass 25mbps of data . * sloc is a registered trademark of Intersil Corporation.
