P. 138

SURVEILLANCE


                          ETHERNET OVER COAX

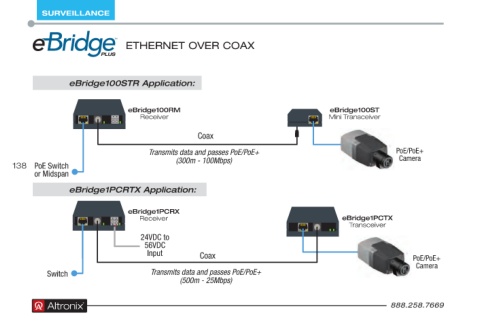

               eBridge100STR Application:

                          eBridge100RM                             eBridge100ST
                             Receiver                             Mini Transceiver
                                        Coax
                               Transmits data and passes PoE/PoE+               PoE/PoE+
                                    (300m - 100Mbps)                            Camera
   138 PoE Switch
        or Midspan
               eBridge1PCRTX Application:

                          eBridge1PCRX
                             Receiver                                eBridge1PCTX
                                                                      Transceiver
                             24VDC to
                              56VDC
                              Input      Coax                                      PoE/PoE+
                                                                                    Camera
          Switch               Transmits data and passes PoE/PoE+
                                     (500m - 25Mbps)

                                                                               888.258.7669
                 ®
