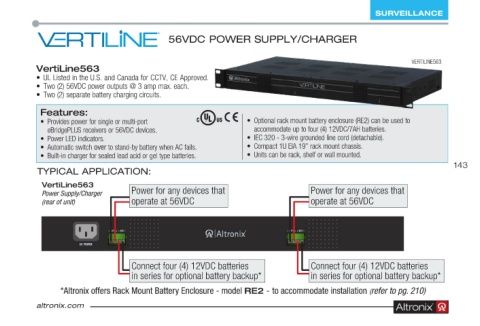

P. 143

SURVEILLANCE

                                  56VDC POWER SUPPLY/CHARGER

                                                                                   VERTILINE563
        VertiLine563
        •  UL Listed in the U .S . and Canada for CCTV, CE Approved .
        •  Two (2) 56VDC power outputs @ 3 amp max . each .
        •  Two (2) separate battery charging circuits .
         Features:
         •  Provides power for single or multi-port   •  Optional rack mount battery enclosure (RE2) can be used to
           eBridgePLUS receivers or 56VDC devices .    accommodate up to four (4) 12VDC/7AH batteries .
         •  Power LED indicators .                •  IEC 320 - 3-wire grounded line cord (detachable) .
         •  Automatic switch over to stand-by battery when AC fails .  •  Compact 1U EIA 19” rack mount chassis .
         •  Built-in charger for sealed lead acid or gel type batteries .  •  Units can be rack, shelf or wall mounted .
                                                                                           143
        TYPICAL APPLICATION:
         VertiLine563
         Power Supply/Charger  Power for any devices that      Power for any devices that
         (rear of unit)    operate at 56VDC                    operate at 56VDC





                           Connect four (4) 12VDC batteries    Connect four (4) 12VDC batteries
                           in series for optional battery backup*  in series for optional battery backup*
             *Altronix offers Rack Mount Battery Enclosure - model RE2 -to accommodate installation (refer to pg. 210)
