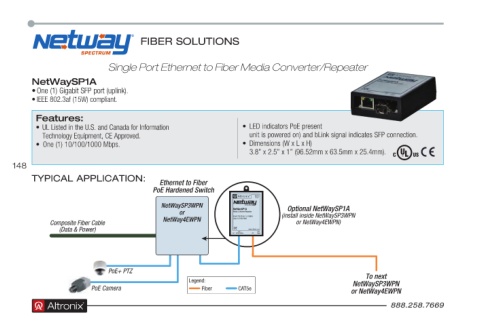

Page 148 - Altronix Product Guide
P. 148

FIBER SOLUTIONS


                      Single Port Ethernet to Fiber Media Converter/Repeater
           NetWaySP1A
       • One (1) Gigabit SFP port (uplink) .
       • IEEE 802 .3af (15W) compliant .
        Features:
        • UL Listed in the U .S . and Canada for Information   •  LED indicators PoE present
          Technology Equipment, CE Approved .      unit is powered on) and bLink signal indicates SFP connection .
        •  One (1) 10/100/1000 Mbps .            •  Dimensions (W x L x H)
                                                   3 .8” x 2 .5” x 1” (96 .52mm x 63 .5mm x 25 .4mm) .
   148
       TYPICAL APPLICATION:      Ethernet to Fiber
                               PoE Hardened Switch
                                 NetWaySP3WPN
                                                          Optional NetWaySP1A
                                     or                  (install inside NetWaySP3WPN
                                 NetWay4EWPN
           Composite Fiber Cable                            or NetWay4EWPN)
             (Data & Power)

                      PoE+ PTZ
                                       Legend:                            To next
                                                                       NetWaySP3WPN
                   PoE Camera            Fiber  CAT5e                  or NetWay4EWPN
                                                                               888.258.7669
                 ®
