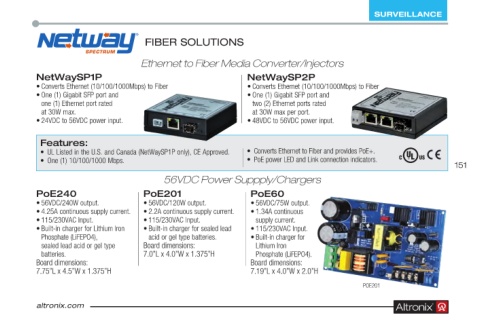

Page 151 - Altronix Product Guide

SURVEILLANCE

FIBER SOLUTIONS

Ethernet to Fiber Media Converter/Injectors
NetWaySP1P NetWaySP2P
• Converts Ethernet (10/100/1000Mbps) to Fiber • Converts Ethernet (10/100/1000Mbps) to Fiber
• One (1) Gigabit SFP port and • One (1) Gigabit SFP port and
one (1) Ethernet port rated two (2) Ethernet ports rated
at 30W max . at 30W max per port .
• 24VDC to 56VDC power input . • 48VDC to 56VDC power input .

Features:
• UL Listed in the U .S . and Canada (NetWaySP1P only), CE Approved . • Converts Ethernet to Fiber and provides PoE+ .
• One (1) 10/100/1000 Mbps . • PoE power LED and Link connection indicators .
151
56VDC Power Suppply/Chargers
PoE240 PoE201 PoE60
• 56VDC/240W output . • 56VDC/120W output . • 56VDC/75W output .
• 4 .25A continuous supply current . • 2 .2A continuous supply current . • 1 .34A continuous
• 115/230VAC Input . • 115/230VAC Input . supply current .
• Built-in charger for Lithium Iron • Built-in charger for sealed lead • 115/230VAC Input .
Phosphate (LiFEPO4), acid or gel type batteries . • Built-in charger for
sealed lead acid or gel type Board dimensions: Lithium Iron
batteries . 7 .0”L x 4 .0”W x 1 .375”H Phosphate (LiFEPO4) .
Board dimensions: Board dimensions:
7 .75”L x 4 .5”W x 1 .375”H 7 .19”L x 4 .0”W x 2 .0”H
POE201
altronix.com ®
