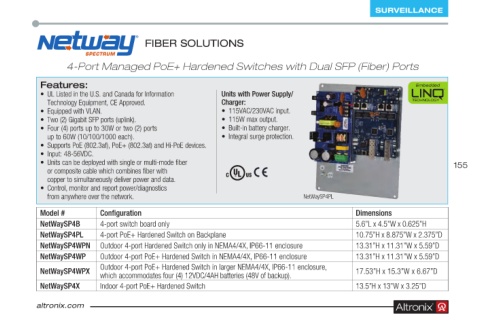

Page 155 - Altronix Product Guide

SURVEILLANCE

FIBER SOLUTIONS

4-Port Managed PoE+ Hardened Switches with Dual SFP (Fiber) Ports
Features: Embedded
™
• UL Listed in the U .S . and Canada for Information Units with Power Supply/
Technology Equipment, CE Approved . Charger:
• Equipped with VLAN . • 115VAC/230VAC input .
• Two (2) Gigabit SFP ports (uplink) . • 115W max output .
• Four (4) ports up to 30W or two (2) ports • Built-in battery charger .
up to 60W (10/100/1000 each) . • Integral surge protection .
• Supports PoE (802 .3af), PoE+ (802 .3at) and Hi-PoE devices .
• Input: 48-56VDC .
• Units can be deployed with single or multi-mode fiber 155
or composite cable which combines fiber with
copper to simultaneously deliver power and data .
• Control, monitor and report power/diagnostics
from anywhere over the network . NetWaySP4PL
Model # Configuration Dimensions
NetWaySP4B 4-port switch board only 5 .6”L x 4 .5”W x 0 .625”H
NetWaySP4PL 4-port PoE+ Hardened Switch on Backplane 10 .75”H x 8 .875”W x 2 .375”D
NetWaySP4WPN Outdoor 4-port Hardened Switch only in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
NetWaySP4WP Outdoor 4-port PoE+ Hardened Switch in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
Outdoor 4-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure,
NetWaySP4WPX 17 .53”H x 15 .3”W x 6 .67”D
which accommodates four (4) 12VDC/4AH batteries (48V of backup) .
NetWaySP4X Indoor 4-port PoE+ Hardened Switch 13 .5”H x 13”W x 3 .25”D
