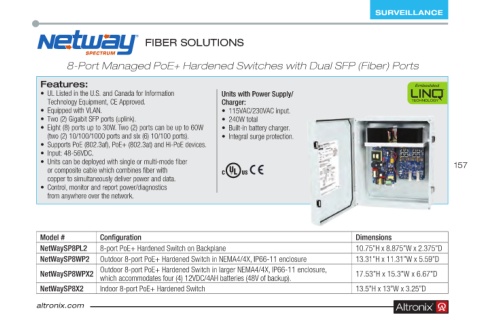

Page 157 - Altronix Product Guide

SURVEILLANCE

FIBER SOLUTIONS

8-Port Managed PoE+ Hardened Switches with Dual SFP (Fiber) Ports

Features: Embedded
• UL Listed in the U .S . and Canada for Information Units with Power Supply/ ™
Technology Equipment, CE Approved . Charger:
• Equipped with VLAN . • 115VAC/230VAC input .
• Two (2) Gigabit SFP ports (uplink) . • 240W total
• Eight (8) ports up to 30W . Two (2) ports can be up to 60W • Built-in battery charger .
(two (2) 10/100/1000 ports and six (6) 10/100 ports) . • Integral surge protection .
• Supports PoE (802 .3af), PoE+ (802 .3at) and Hi-PoE devices .
• Input: 48-56VDC .
• Units can be deployed with single or multi-mode fiber 157
or composite cable which combines fiber with
copper to simultaneously deliver power and data .
• Control, monitor and report power/diagnostics
from anywhere over the network .

Model # Configuration Dimensions
NetWaySP8PL2 8-port PoE+ Hardened Switch on Backplane 10 .75”H x 8 .875”W x 2 .375”D
NetWaySP8WP2 Outdoor 8-port PoE+ Hardened Switch in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
NetWaySP8WPX2 Outdoor 8-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure, 17 .53”H x 15 .3”W x 6 .67”D
which accommodates four (4) 12VDC/4AH batteries (48V of backup) .
NetWaySP8X2 Indoor 8-port PoE+ Hardened Switch 13 .5”H x 13”W x 3 .25”D
