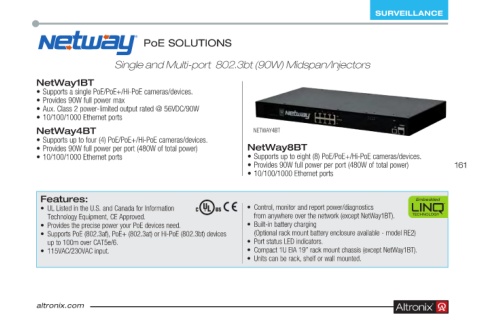

Page 161 - Altronix Product Guide

SURVEILLANCE

®
PoE SOLUTIONS
Single and Multi-port 802.3bt (90W) Midspan/Injectors

NetWay1BT
• Supports a single PoE/PoE+/Hi-PoE cameras/devices .
• Provides 90W full power max
• Aux . Class 2 power-limited output rated @ 56VDC/90W
• 10/100/1000 Ethernet ports
NetWay4BT NETWAY4BT
• Supports up to four (4) PoE/PoE+/Hi-PoE cameras/devices .
• Provides 90W full power per port (480W of total power) NetWay8BT
• 10/100/1000 Ethernet ports • Supports up to eight (8) PoE/PoE+/Hi-PoE cameras/devices .
• Provides 90W full power per port (480W of total power) 161
• 10/100/1000 Ethernet ports

Features: Embedded
• UL Listed in the U .S . and Canada for Information • Control, monitor and report power/diagnostics ™
Technology Equipment, CE Approved . from anywhere over the network (except NetWay1BT) .
• Provides the precise power your PoE devices need . • Built-in battery charging
• Supports PoE (802 .3af), PoE+ (802 .3at) or Hi-PoE (802 .3bt) devices (Optional rack mount battery enclosure available - model RE2)
up to 100m over CAT5e/6 . • Port status LED indicators .
• 115VAC/230VAC input . • Compact 1U EIA 19” rack mount chassis (except NetWay1BT) .
• Units can be rack, shelf or wall mounted .
