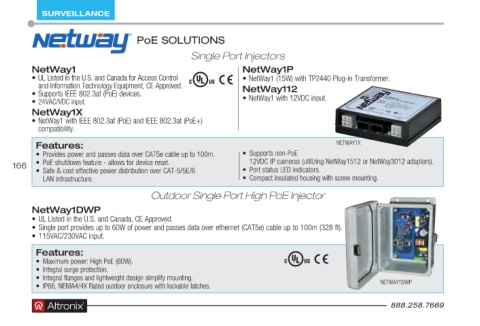

Page 166 - Altronix Product Guide

SURVEILLANCE

®
PoE SOLUTIONS
Single Port Injectors
NetWay1 NetWay1P
• UL Listed in the U .S . and Canada for Access Control • NetWay1 (15W) with TP2440 Plug-in Transformer .
and Information Technology Equipment, CE Approved . NetWay112
• Supports IEEE 802 .3af (PoE) devices .
• 24VAC/VDC input . • NetWay1 with 12VDC input .
NetWay1X
• NetWay1 with IEEE 802 .3af (PoE) and IEEE 802 .3at (PoE+)
compatibility .
Features: NETWAY1X
• Provides power and passes data over CAT5e cable up to 100m . • Supports non-PoE
166 • PoE shutdown feature - allows for device reset . 12VDC IP cameras (utilizing NetWay1512 or NetWay3012 adapters) .
• Safe & cost effective power distribution over CAT-5/5E/6 • Port status LED indicators .
LAN infrastructure . • Compact insulated housing with screw mounting .
Outdoor Single Port High PoE Injector
NetWay1DWP
• UL Listed in the U .S . and Canada, CE Approved .
• Single port provides up to 60W of power and passes data over ethernet (CAT5e) cable up to 100m (328 ft) .
• 115VAC/230VAC input .
Features:
• Maximum power: High PoE (60W) .
• Integral surge protection .
• Integral flanges and lightweight design simplify mounting . NETWAY1DWP
• IP66, NEMA4/4X Rated outdoor enclosure with lockable latches .
888.258.7669
®
