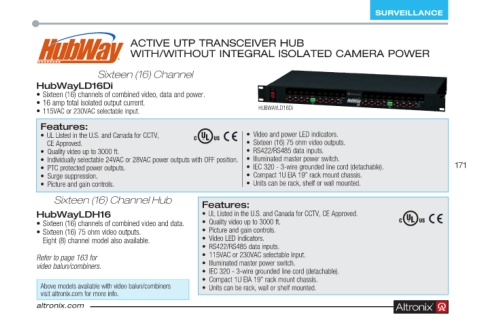

Page 171 - Altronix Product Guide

SURVEILLANCE

ACTIVE UTP TRANSCEIVER HUB
WITH/WITHOUT INTEGRAL ISOLATED CAMERA POWER
Sixteen (16) Channel
HubWayLD16Di
• Sixteen (16) channels of combined video, data and power .
• 16 amp total isolated output current .
• 115VAC or 230VAC selectable input . HUBWAYLD16Di
Features:
• UL Listed in the U .S . and Canada for CCTV, • Video and power LED indicators .
CE Approved . • Sixteen (16) 75 ohm video outputs .
• Quality video up to 3000 ft . • RS422/RS485 data inputs .
• Individually selectable 24VAC or 28VAC power outputs with OFF position . • Illuminated master power switch .
• PTC protected power outputs . • IEC 320 - 3-wire grounded line cord (detachable) . 171
• Surge suppression . • Compact 1U EIA 19” rack mount chassis .
• Picture and gain controls . • Units can be rack, shelf or wall mounted .
Sixteen (16) Channel Hub
Features:
HubWayLDH16 • UL Listed in the U .S . and Canada for CCTV, CE Approved .
• Sixteen (16) channels of combined video and data . • Quality video up to 3000 ft .
• Sixteen (16) 75 ohm video outputs . • Picture and gain controls .
Eight (8) channel model also available . • Video LED indicators .
• RS422/RS485 data inputs .
Refer to page 163 for • 115VAC or 230VAC selectable input .
video balun/combiners. • Illuminated master power switch .
• IEC 320 - 3-wire grounded line cord (detachable) .
• Compact 1U EIA 19” rack mount chassis .
Above models available with video balun/combiners • Units can be rack, wall or shelf mounted .
visit altronix .com for more info .
