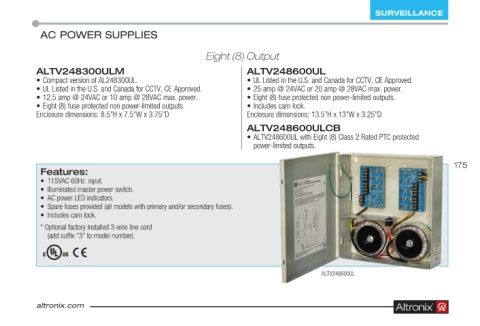

Page 175 - Altronix Product Guide

SURVEILLANCE

AC POWER SUPPLIES
Eight (8) Output
ALTV248300ULM ALTV248600UL
• Compact version of AL248300UL . • UL Listed in the U .S . and Canada for CCTV, CE Approved .
• UL Listed in the U .S . and Canada for CCTV, CE Approved . • 25 amp @ 24VAC or 20 amp @ 28VAC max . power .
• 12 .5 amp @ 24VAC or 10 amp @ 28VAC max . power . • Eight (8) fuse protected non power-limited outputs .
• Eight (8) fuse protected non power-limited outputs . • Includes cam lock .
Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .75”D Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
ALTV248600ULCB
• ALTV248600UL with Eight (8) Class 2 Rated PTC protected
power-limited outputs .
175
Features:
• 115VAC 60Hz . input .
• Illuminated master power switch .
• AC power LED indicators .
• Spare fuses provided (all models with primary and/or secondary fuses) .
• Includes cam lock .
* Optional factory installed 3-wire line cord
(add suffix “3” to model number) .

ALTV248600UL
