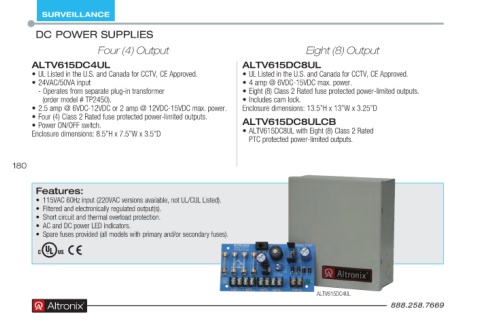

Page 180 - Altronix Product Guide

SURVEILLANCE

DC POWER SUPPLIES
Four (4) Output Eight (8) Output
ALTV615DC4UL ALTV615DC8UL
• UL Listed in the U .S . and Canada for CCTV, CE Approved . • UL Listed in the U .S . and Canada for CCTV, CE Approved .
• 24VAC/50VA input • 4 amp @ 6VDC-15VDC max . power .
- Operates from separate plug-in transformer • Eight (8) Class 2 Rated fuse protected power-limited outputs .
(order model # TP2450) . • Includes cam lock .
• 2 .5 amp @ 6VDC-12VDC or 2 amp @ 12VDC-15VDC max . power . Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
• Four (4) Class 2 Rated fuse protected power-limited outputs . ALTV615DC8ULCB
• Power ON/OFF switch .
Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D • ALTV615DC8UL with Eight (8) Class 2 Rated
PTC protected power-limited outputs .

180

Features:
• 115VAC 60Hz input (220VAC versions available, not UL/CUL Listed) .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• AC and DC power LED indicators .
• Spare fuses provided (all models with primary and/or secondary fuses) .

ALTV615DC4UL
