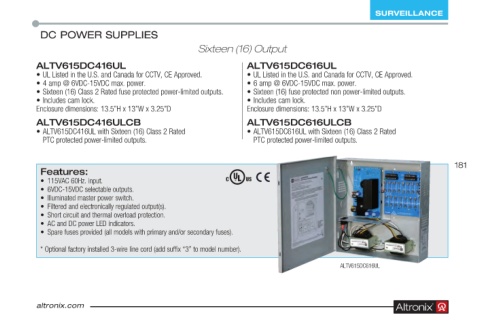

SURVEILLANCE
DC POWER SUPPLIES
Sixteen (16) Output
ALTV615DC416UL ALTV615DC616UL
• UL Listed in the U .S . and Canada for CCTV, CE Approved . • UL Listed in the U .S . and Canada for CCTV, CE Approved .
• 4 amp @ 6VDC-15VDC max . power . • 6 amp @ 6VDC-15VDC max . power .
• Sixteen (16) Class 2 Rated fuse protected power-limited outputs . • Sixteen (16) fuse protected non power-limited outputs .
• Includes cam lock . • Includes cam lock .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
ALTV615DC416ULCB ALTV615DC616ULCB
• ALTV615DC416UL with Sixteen (16) Class 2 Rated • ALTV615DC616UL with Sixteen (16) Class 2 Rated
PTC protected power-limited outputs . PTC protected power-limited outputs .
181
Features:
• 115VAC 60Hz . input .
• 6VDC-15VDC selectable outputs .
• Illuminated master power switch .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• AC and DC power LED indicators .
• Spare fuses provided (all models with primary and/or secondary fuses) .
* Optional factory installed 3-wire line cord (add suffix “3” to model number) .
ALTV615DC616UL
