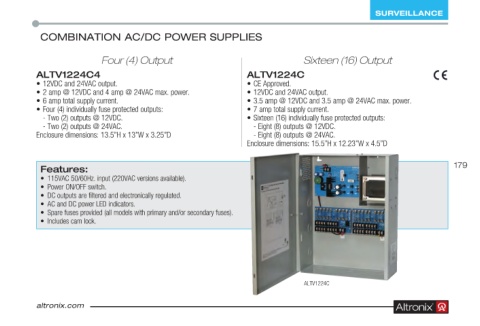

Page 179 - Altronix Product Guide

SURVEILLANCE

COMBINATION AC/DC POWER SUPPLIES

Four (4) Output Sixteen (16) Output
ALTV1224C4 ALTV1224C
• 12VDC and 24VAC output . • CE Approved .
• 2 amp @ 12VDC and 4 amp @ 24VAC max . power . • 12VDC and 24VAC output .
• 6 amp total supply current . • 3 .5 amp @ 12VDC and 3 .5 amp @ 24VAC max . power .
• Four (4) individually fuse protected outputs: • 7 amp total supply current .
- Two (2) outputs @ 12VDC . • Sixteen (16) individually fuse protected outputs:
- Two (2) outputs @ 24VAC . - Eight (8) outputs @ 12VDC .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D - Eight (8) outputs @ 24VAC .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D

Features: 179
• 115VAC 50/60Hz . input (220VAC versions available) .
• Power ON/OFF switch .
• DC outputs are filtered and electronically regulated .
• AC and DC power LED indicators .
• Spare fuses provided (all models with primary and/or secondary fuses) .
• Includes cam lock .

ALTV1224C
