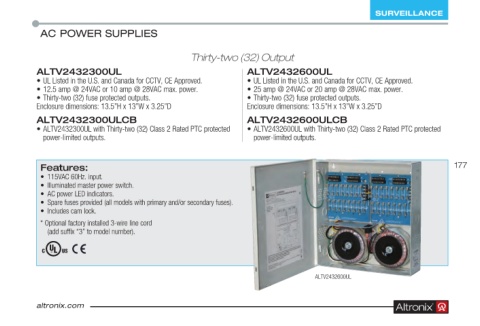

Page 177 - Altronix Product Guide

SURVEILLANCE
AC POWER SUPPLIES

Thirty-two (32) Output
ALTV2432300UL ALTV2432600UL
• UL Listed in the U .S . and Canada for CCTV, CE Approved . • UL Listed in the U .S . and Canada for CCTV, CE Approved .
• 12 .5 amp @ 24VAC or 10 amp @ 28VAC max . power . • 25 amp @ 24VAC or 20 amp @ 28VAC max . power .
• Thirty-two (32) fuse protected outputs . • Thirty-two (32) fuse protected outputs .
Enclosure dimensions: 13 . 5”H x 13”W x 3 .25”D Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
ALTV2432300ULCB ALTV2432600ULCB
• ALTV2432300UL with Thirty-two (32) Class 2 Rated PTC protected • ALTV2432600UL with Thirty-two (32) Class 2 Rated PTC protected
power-limited outputs . power-limited outputs .

Features: 177
• 115VAC 60Hz . input .
• Illuminated master power switch .
• AC power LED indicators .
• Spare fuses provided (all models with primary and/or secondary fuses) .
• Includes cam lock .
* Optional factory installed 3-wire line cord
(add suffix “3” to model number) .

ALTV2432600UL
