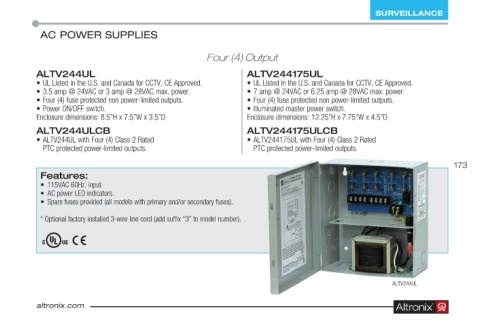

Page 173 - Altronix Product Guide

SURVEILLANCE

AC POWER SUPPLIES
Four (4) Output
ALTV244UL ALTV244175UL
• UL Listed in the U .S . and Canada for CCTV, CE Approved . • UL Listed in the U .S . and Canada for CCTV, CE Approved .
• 3 .5 amp @ 24VAC or 3 amp @ 28VAC max . power . • 7 amp @ 24VAC or 6 .25 amp @ 28VAC max . power .
• Four (4) fuse protected non power-limited outputs . • Four (4) fuse protected non power-limited outputs .
• Power ON/OFF switch . • Illuminated master power switch .
Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D Enclosure dimensions: 12 .25”H x 7 .75”W x 4 .5”D
ALTV244ULCB ALTV244175ULCB
• ALTV244UL with Four (4) Class 2 Rated • ALTV244175UL with Four (4) Class 2 Rated
PTC protected power-limited outputs . PTC protected power-limited outputs .
173
Features:
• 115VAC 60Hz . input .
• AC power LED indicators .
• Spare fuses provided (all models with primary and/or secondary fuses) .
* Optional factory installed 3-wire line cord (add suffix “3” to model number) .

ALTV244UL
