SURVEILLANCE

®
PoE SOLUTIONS

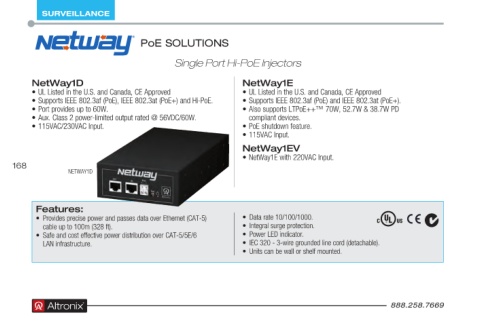

Single Port Hi-PoE Injectors

NetWay1D NetWay1E
• UL Listed in the U .S . and Canada, CE Approved • UL Listed in the U .S . and Canada, CE Approved
• Supports IEEE 802 .3af (PoE), IEEE 802 .3at (PoE+) and Hi-PoE . • Supports IEEE 802 .3af (PoE) and IEEE 802 .3at (PoE+) .
• Port provides up to 60W . • Also supports LTPoE++™ 70W, 52 .7W & 38 .7W PD
• Aux . Class 2 power-limited output rated @ 56VDC/60W . compliant devices .
• 115VAC/230VAC Input . • PoE shutdown feature .
• 115VAC Input .
NetWay1EV
• NetWay1E with 220VAC Input .
168
NETWAY1D

Features:
• Provides precise power and passes data over Ethernet (CAT-5) • Data rate 10/100/1000 .
cable up to 100m (328 ft) . • Integral surge protection .
• Safe and cost effective power distribution over CAT-5/5E/6 • Power LED indicator .
LAN infrastructure . • IEC 320 - 3-wire grounded line cord (detachable) .
• Units can be wall or shelf mounted .
